Doosan S035 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: A de (addesmit)

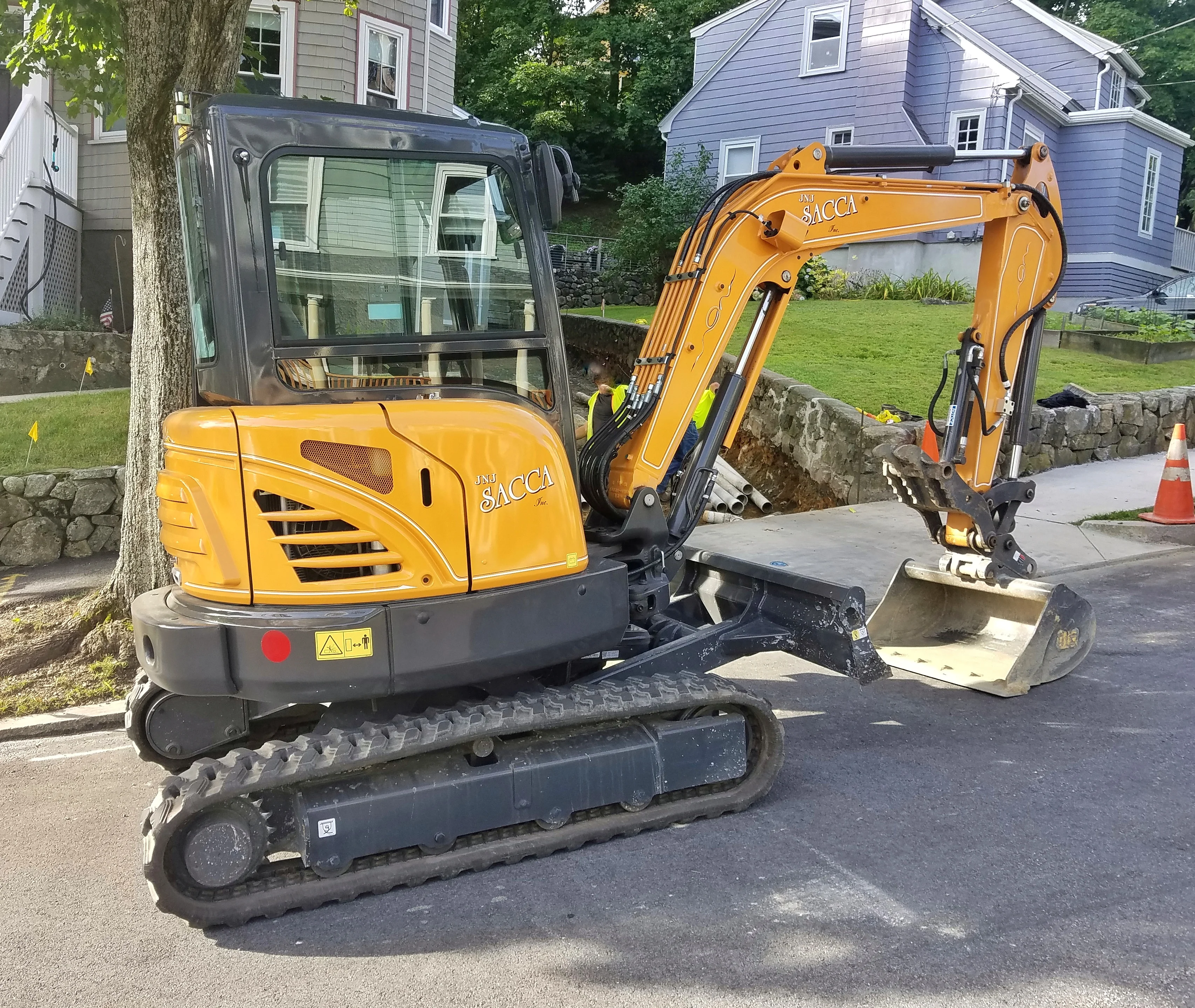

Caption: Doosan S035 Crawler Excavator in jobsite field operations

Doosan logoHydraulic Excavator

Doosan S035

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight3.3 T Class
3,284 kg
≈ 7,240 lbs
Max Dig DepthGround Reach
2.30 m
≈ 7.5 ft
Net Engine PowerCrawler
24.1 HP
≈ 18 kW
Verified Technical Fact Sheet · Doosan S035

The official operating weight of the Doosan S035 is 3,284 kg (7,240 lbs), with a net engine output of 24.1 HP and a maximum digging depth of 2.30 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
3LD1
Net Power
24.1 HP (18 kW)
Gross Power
24.8 HP
Displacement
1.47 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
3,284 kg
Weight (lbs)
7,240 lbs
Hydraulic System Flow
37.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
2.30 m (7.5 ft)
Max Reach (Ground)
4.95 m
Max Dump Height
3.47 m
Shipping Width
1503 mm
Shipping Height
1637 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Doosan Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Doosan S035 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Doosan S035

How much does a Doosan S035 excavator weigh?

The official operating weight of the Doosan S035 hydraulic excavator is 3,284 kg (7,240 lbs) (3.3 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Doosan S035?

The maximum digging depth for the Doosan S035 is 2.30 m (7.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Doosan S035 have?

The Doosan S035 is powered by a 3LD1 powertrain delivering 24.1 HP (18 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Doosan S035?

The Doosan S035 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
