Gehl 503Z Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

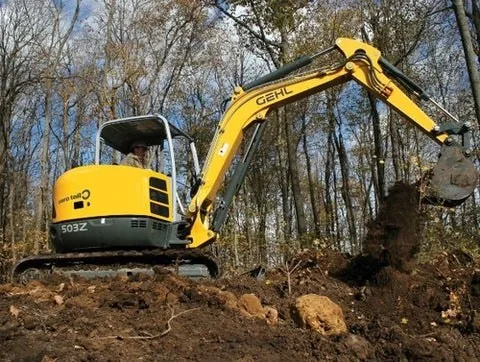

Caption: Gehl 503Z Crawler Excavator in jobsite field operations

Gehl logoHydraulic Excavator

Gehl 503Z

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight4.8 T Class
4,799 kg
≈ 10,580 lbs
Max Dig DepthGround Reach
2.92 m
≈ 9.6 ft
Net Engine PowerCrawler
38 HP
≈ 28 kW
Verified Technical Fact Sheet · Gehl 503Z

The official operating weight of the Gehl 503Z is 4,799 kg (10,580 lbs), with a net engine output of 38 HP and a maximum digging depth of 2.92 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
4TNV88-PNS, A TIER II
Net Power
38 HP (28 kW)
Gross Power
38 HP
Displacement
2.2 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
4,799 kg
Weight (lbs)
10,580 lbs
Hydraulic System Flow
166.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.15 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.92 m (9.6 ft)
Max Reach (Ground)
6.30 m
Max Dump Height
3.90 m
Shipping Width
N/A
Shipping Height
2573 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Gehl Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Gehl 503Z jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Gehl 503Z

How much does a Gehl 503Z excavator weigh?

The official operating weight of the Gehl 503Z hydraulic excavator is 4,799 kg (10,580 lbs) (4.8 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Gehl 503Z?

The maximum digging depth for the Gehl 503Z is 2.92 m (9.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Gehl 503Z have?

The Gehl 503Z is powered by a 4TNV88-PNS, A TIER II powertrain delivering 38 HP (28 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Gehl 503Z?

The Gehl 503Z is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
