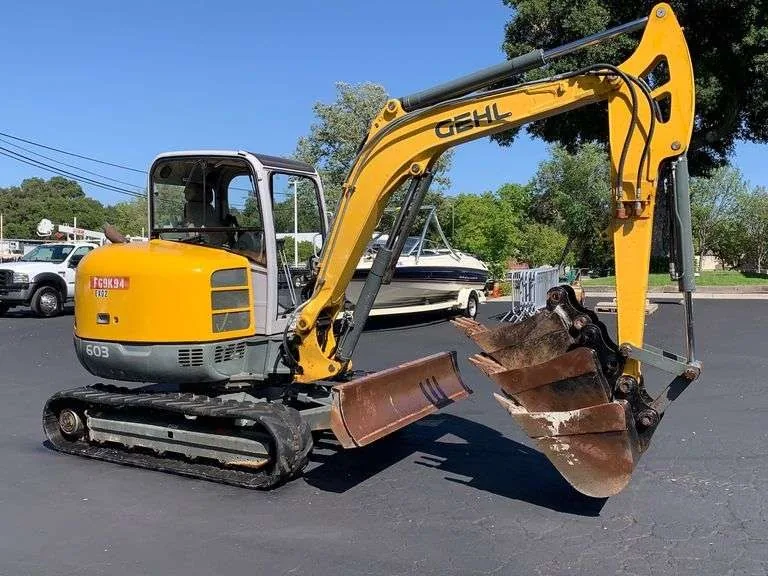

Caption: Gehl 603 Crawler Excavator in jobsite field operations
Hydraulic ExcavatorGehl 603
Mini Excavator (2 - 6t) · Crawler Chassis
Operating Weight5.7 T Class
5,699 kg
≈ 12,564.1 lbs
Max Dig DepthGround Reach
3.14 m
≈ 10.3 ft
Net Engine PowerCrawler
57 HP
≈ 43 kW
Advertisement
[ Ad Slot: model-mid-banner ]
Authentic In-Field Operation Footage
Real-world Gehl 603 jobsite telemetry & machine handling demonstration
Channel: 777 Auction Company
Engine & Powertrain
- Engine Make / Model
- 4TNV98-VNS, A TIER II
- Net Power
- 57 HP (43 kW)
- Gross Power
- 69 HP
- Displacement
- 3.31 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulic Flow
- Operating Weight
- 5,699 kg
- Weight (lbs)
- 12,564.1 lbs
- Hydraulic Flow
- 186.2 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.15 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 3.14 m (10.3 ft)
- Max Reach (Ground)
- 6.21 m
- Max Dump Height
- 4.00 m
- Shipping Width
- N/A
- Shipping Height
- 2573 mm
