Gehl 803 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

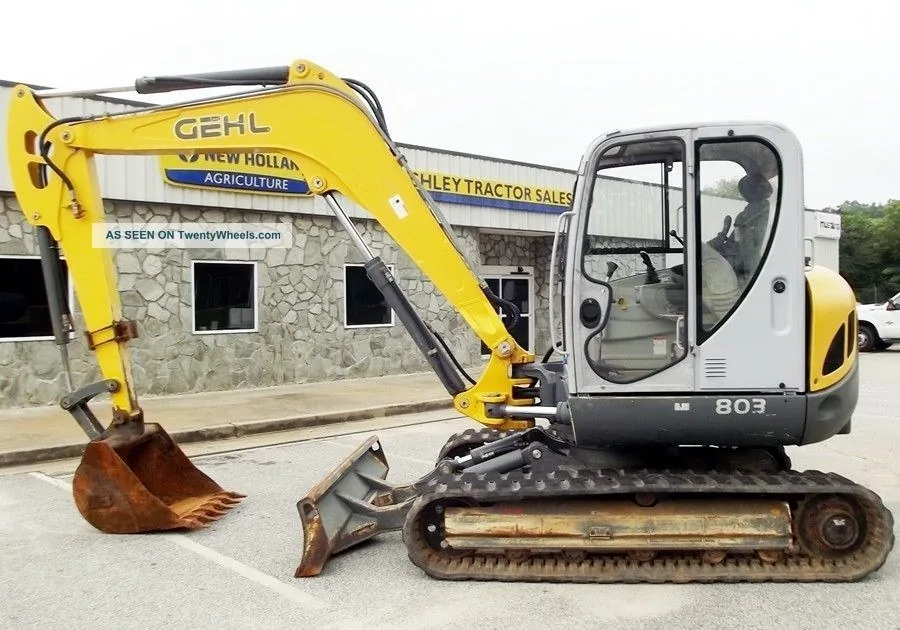

Caption: Gehl 803 Crawler Excavator in jobsite field operations

Gehl logoHydraulic Excavator

Gehl 803

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight8.0 T Class
7,959 kg
≈ 17,546.6 lbs
Max Dig DepthGround Reach
3.97 m
≈ 13.0 ft
Net Engine PowerCrawler
57 HP
≈ 43 kW
Verified Technical Fact Sheet · Gehl 803

The official operating weight of the Gehl 803 is 7,959 kg (17,546.6 lbs), with a net engine output of 57 HP and a maximum digging depth of 3.97 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
4TNV98-VNS, A TIER II
Net Power
57 HP (43 kW)
Gross Power
69 HP
Displacement
3.31 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
7,959 kg
Weight (lbs)
17,546.6 lbs
Hydraulic System Flow
238.5 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.23 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.97 m (13 ft)
Max Reach (Ground)
7.44 m
Max Dump Height
5.03 m
Shipping Width
N/A
Shipping Height
2713 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Gehl Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Gehl 803 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Gehl 803

How much does a Gehl 803 excavator weigh?

The official operating weight of the Gehl 803 hydraulic excavator is 7,959 kg (17,546.6 lbs) (8 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Gehl 803?

The maximum digging depth for the Gehl 803 is 3.97 m (13.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Gehl 803 have?

The Gehl 803 is powered by a 4TNV98-VNS, A TIER II powertrain delivering 57 HP (43 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Gehl 803?

The Gehl 803 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
