Hidromek HMK220LC2 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

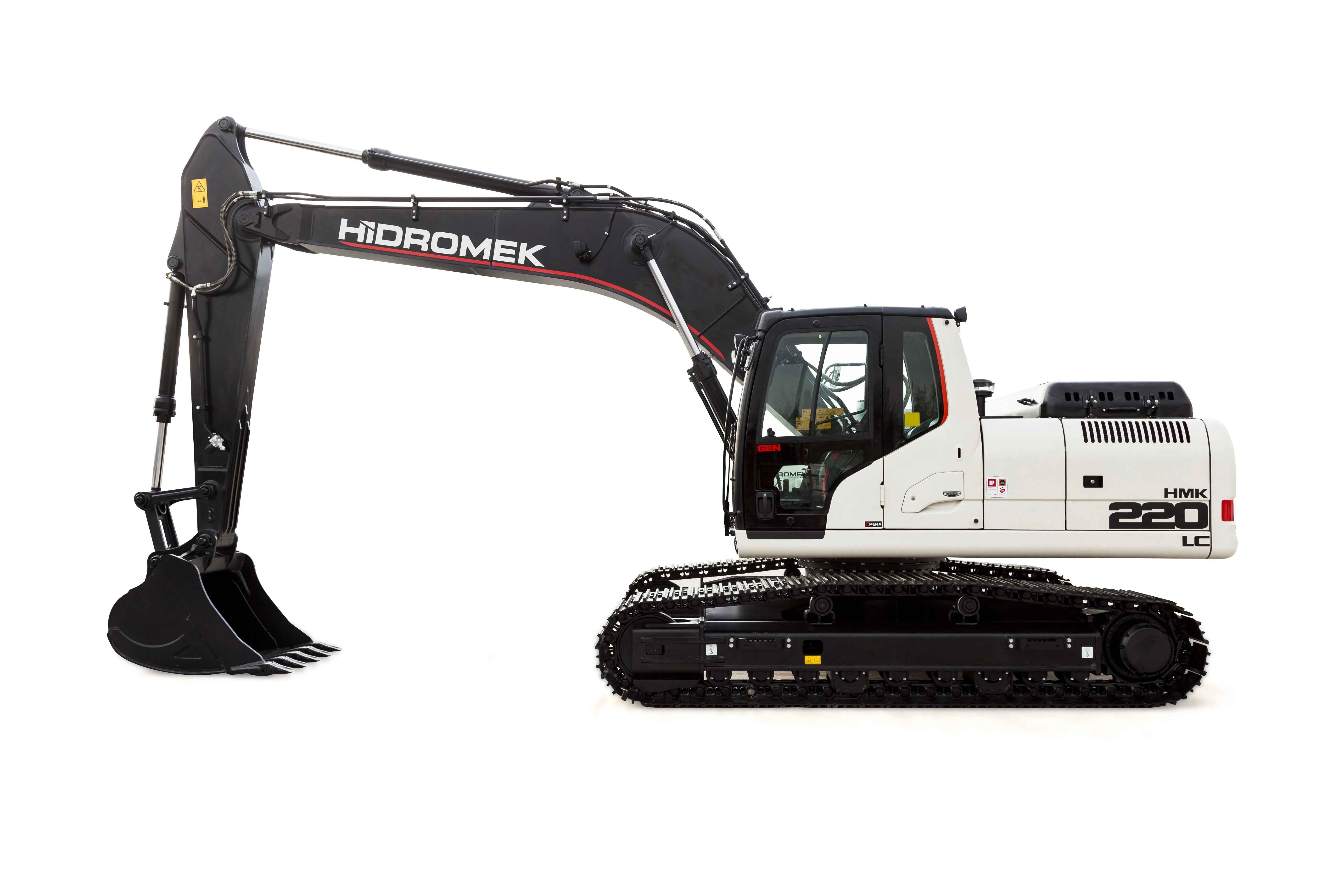

Caption: Hidromek HMK220LC2 Crawler Excavator in jobsite field operations

Hidromek logoHydraulic Excavator

Hidromek HMK220LC2

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight22.3 T Class
22,300 kg
≈ 49,163 lbs
Max Dig DepthGround Reach
5.10 m
≈ 16.7 ft
Net Engine PowerCrawler
N/A
≈ N/A
Verified Technical Fact Sheet · Hidromek HMK220LC2

The official operating weight of the Hidromek HMK220LC2 is 22,300 kg (49,163 lbs), with a net engine output of N/A and a maximum digging depth of 5.10 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
6D34-TLU2D
Net Power
N/A
Gross Power
153 HP
Displacement
5.86 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
22,300 kg
Weight (lbs)
49,163 lbs
Hydraulic System Flow
448.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
5.10 m (16.7 ft)
Max Reach (Ground)
9.88 m
Max Dump Height
6.90 m
Shipping Width
2990 mm
Shipping Height
3091 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Hidromek Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Hidromek HMK220LC2 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Hidromek HMK220LC2

How much does a Hidromek HMK220LC2 excavator weigh?

The official operating weight of the Hidromek HMK220LC2 hydraulic excavator is 22,300 kg (49,163 lbs) (22.3 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Hidromek HMK220LC2?

The maximum digging depth for the Hidromek HMK220LC2 is 5.10 m (16.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Hidromek HMK220LC2 have?

The Hidromek HMK220LC2 is powered by a 6D34-TLU2D powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Hidromek HMK220LC2?

The Hidromek HMK220LC2 is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
