Link-Belt BELT135SPINACE Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

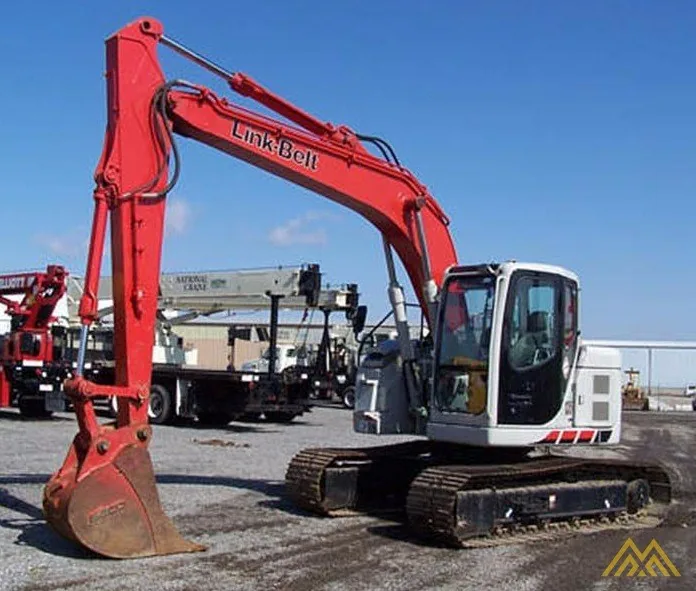

Caption: Link-Belt BELT135SPINACE Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT135SPINACE

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight13.2 T Class
13,199 kg
≈ 29,098.8 lbs
Max Dig DepthGround Reach
5.08 m
≈ 16.7 ft
Net Engine PowerCrawler
88 HP
≈ 66 kW
Verified Technical Fact Sheet · Link-Belt BELT135SPINACE

The official operating weight of the Link-Belt BELT135SPINACE is 13,199 kg (29,098.8 lbs), with a net engine output of 88 HP and a maximum digging depth of 5.08 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
BB-4BG1T
Net Power
88 HP (66 kW)
Gross Power
88 HP
Displacement
4.33 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
13,199 kg
Weight (lbs)
29,098.8 lbs
Hydraulic System Flow
233.9 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.54 m³

Working Dimensions & Dig Depth

Max Digging Depth
5.08 m (16.7 ft)
Max Reach (Ground)
8.43 m
Max Dump Height
7.13 m
Shipping Width
2591 mm
Shipping Height
2752 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT135SPINACE jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT135SPINACE

How much does a Link-Belt BELT135SPINACE excavator weigh?

The official operating weight of the Link-Belt BELT135SPINACE hydraulic excavator is 13,199 kg (29,098.8 lbs) (13.2 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Link-Belt BELT135SPINACE?

The maximum digging depth for the Link-Belt BELT135SPINACE is 5.08 m (16.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT135SPINACE have?

The Link-Belt BELT135SPINACE is powered by a BB-4BG1T powertrain delivering 88 HP (66 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT135SPINACE?

The Link-Belt BELT135SPINACE is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
