Link-Belt BELT210LXLONGFRONT Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

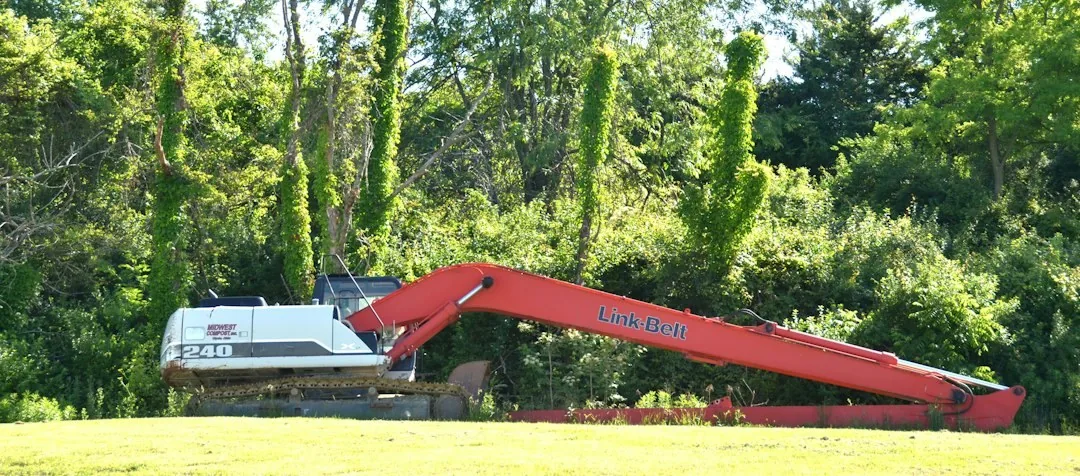

Caption: Link-Belt BELT210LXLONGFRONT Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT210LXLONGFRONT

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight21.6 T Class
21,591 kg
≈ 47,600 lbs
Max Dig DepthGround Reach
10.27 m
≈ 33.7 ft
Net Engine PowerCrawler
138 HP
≈ 103 kW
Verified Technical Fact Sheet · Link-Belt BELT210LXLONGFRONT

The official operating weight of the Link-Belt BELT210LXLONGFRONT is 21,591 kg (47,600 lbs), with a net engine output of 138 HP and a maximum digging depth of 10.27 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
BB-6BG1T
Net Power
138 HP (103 kW)
Gross Power
138 HP
Displacement
6.49 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
21,591 kg
Weight (lbs)
47,600 lbs
Hydraulic System Flow
402 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.38 m³

Working Dimensions & Dig Depth

Max Digging Depth
10.27 m (33.7 ft)
Max Reach (Ground)
15.49 m
Max Dump Height
10.73 m
Shipping Width
3191 mm
Shipping Height
3002 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT210LXLONGFRONT jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT210LXLONGFRONT

How much does a Link-Belt BELT210LXLONGFRONT excavator weigh?

The official operating weight of the Link-Belt BELT210LXLONGFRONT hydraulic excavator is 21,591 kg (47,600 lbs) (21.6 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Link-Belt BELT210LXLONGFRONT?

The maximum digging depth for the Link-Belt BELT210LXLONGFRONT is 10.27 m (33.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT210LXLONGFRONT have?

The Link-Belt BELT210LXLONGFRONT is powered by a BB-6BG1T powertrain delivering 138 HP (103 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT210LXLONGFRONT?

The Link-Belt BELT210LXLONGFRONT is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
