Link-Belt BELT210X2 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

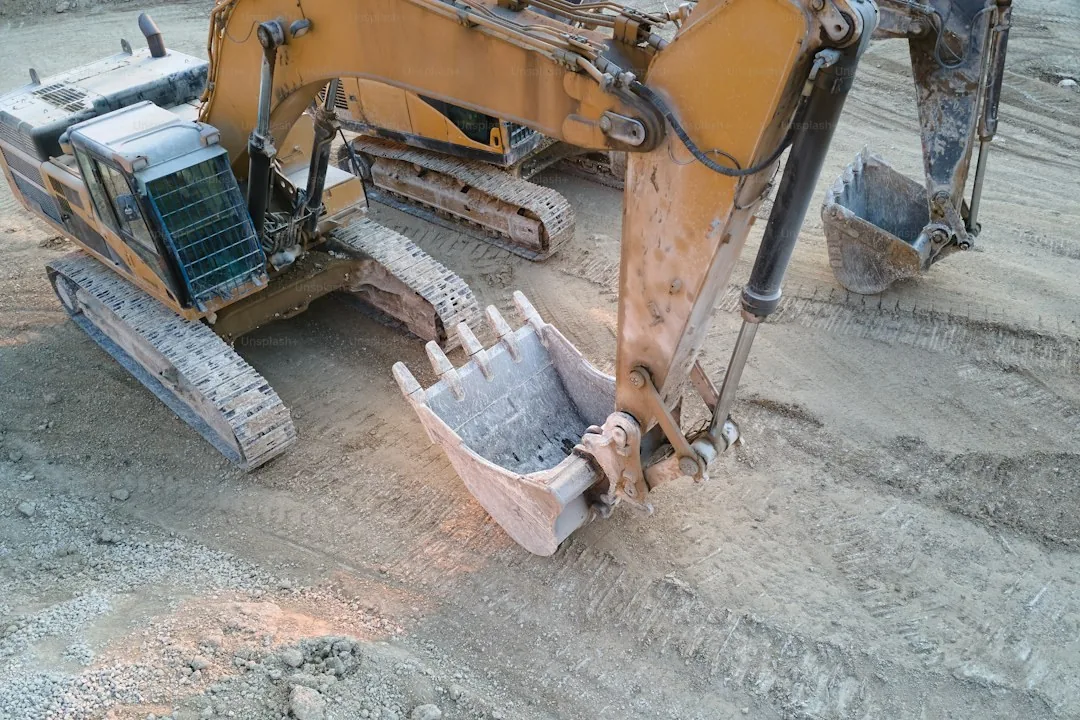

Caption: Link-Belt BELT210X2 Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT210X2

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight21.5 T Class
21,500 kg
≈ 47,399.3 lbs
Max Dig DepthGround Reach
5.50 m
≈ 18.1 ft
Net Engine PowerCrawler
157 HP
≈ 117 kW
Verified Technical Fact Sheet · Link-Belt BELT210X2

The official operating weight of the Link-Belt BELT210X2 is 21,500 kg (47,399.3 lbs), with a net engine output of 157 HP and a maximum digging depth of 5.50 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AI-4HK1X
Net Power
157 HP (117 kW)
Gross Power
157 HP
Displacement
5.2 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
21,500 kg
Weight (lbs)
47,399.3 lbs
Hydraulic System Flow
421.7 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.07 m³

Working Dimensions & Dig Depth

Max Digging Depth
5.50 m (18.1 ft)
Max Reach (Ground)
9.24 m
Max Dump Height
6.59 m
Shipping Width
3191 mm
Shipping Height
3191 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT210X2 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT210X2

How much does a Link-Belt BELT210X2 excavator weigh?

The official operating weight of the Link-Belt BELT210X2 hydraulic excavator is 21,500 kg (47,399.3 lbs) (21.5 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Link-Belt BELT210X2?

The maximum digging depth for the Link-Belt BELT210X2 is 5.50 m (18.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT210X2 have?

The Link-Belt BELT210X2 is powered by a AI-4HK1X powertrain delivering 157 HP (117 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT210X2?

The Link-Belt BELT210X2 is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
