Link-Belt BELT240X2LONGFRONT Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

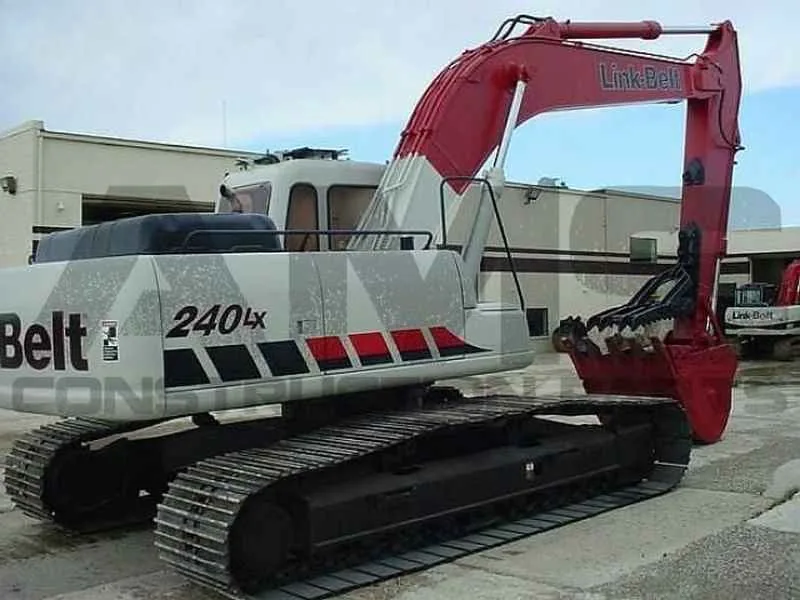

Caption: Link-Belt BELT240X2LONGFRONT Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT240X2LONGFRONT

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight28.0 T Class
28,000 kg
≈ 61,729.4 lbs
Max Dig DepthGround Reach
12.13 m
≈ 39.8 ft
Net Engine PowerCrawler
177 HP
≈ 132 kW
Verified Technical Fact Sheet · Link-Belt BELT240X2LONGFRONT

The official operating weight of the Link-Belt BELT240X2LONGFRONT is 28,000 kg (61,729.4 lbs), with a net engine output of 177 HP and a maximum digging depth of 12.13 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AH-4HK1X
Net Power
177 HP (132 kW)
Gross Power
177 HP
Displacement
5.2 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
28,000 kg
Weight (lbs)
61,729.4 lbs
Hydraulic System Flow
467.9 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.38 m³

Working Dimensions & Dig Depth

Max Digging Depth
12.13 m (39.8 ft)
Max Reach (Ground)
18.22 m
Max Dump Height
11.78 m
Shipping Width
3392 mm
Shipping Height
3130 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT240X2LONGFRONT jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT240X2LONGFRONT

How much does a Link-Belt BELT240X2LONGFRONT excavator weigh?

The official operating weight of the Link-Belt BELT240X2LONGFRONT hydraulic excavator is 28,000 kg (61,729.4 lbs) (28 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Link-Belt BELT240X2LONGFRONT?

The maximum digging depth for the Link-Belt BELT240X2LONGFRONT is 12.13 m (39.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT240X2LONGFRONT have?

The Link-Belt BELT240X2LONGFRONT is powered by a AH-4HK1X powertrain delivering 177 HP (132 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT240X2LONGFRONT?

The Link-Belt BELT240X2LONGFRONT is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
