Link-Belt BELT290LXROADBUILDER Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

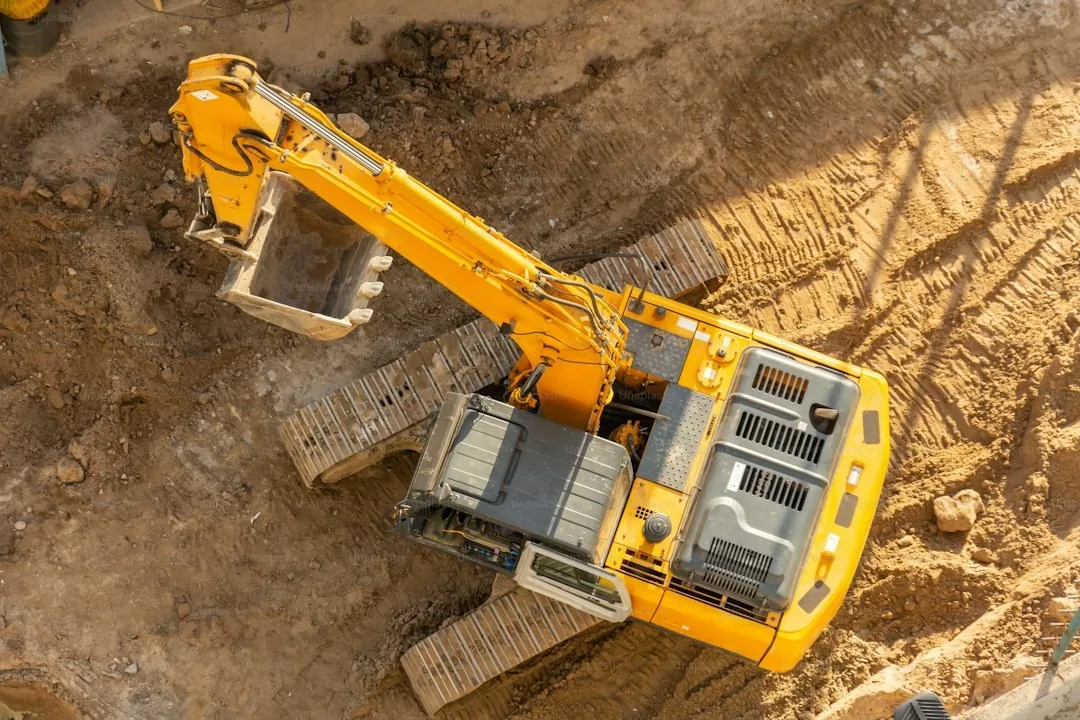

Caption: Link-Belt BELT290LXROADBUILDER Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT290LXROADBUILDER

Source-Verified

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight29.8 T Class
29,800 kg
≈ 65,697.7 lbs
Max Dig DepthGround Reach
7.30 m
≈ 24.0 ft
Net Engine PowerCrawler
207 HP
≈ 154 kW
Verified Technical Fact Sheet · Link-Belt BELT290LXROADBUILDER

The official operating weight of the Link-Belt BELT290LXROADBUILDER is 29,800 kg (65,697.7 lbs), with a net engine output of 207 HP and a maximum digging depth of 7.30 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
CC-6BG1TC
Net Power
207 HP (154 kW)
Gross Power
207 HP
Displacement
6.49 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
29,800 kg
Weight (lbs)
65,697.7 lbs
Hydraulic System Flow
500 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
7.30 m (24 ft)
Max Reach (Ground)
10.52 m
Max Dump Height
8.60 m
Shipping Width
3642 mm
Shipping Height
3353 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt

Link-Belt 290LX Technical Specification

Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Region: NA
Engine Rating Standards
Net: SAE J1349
Gross: SAE J1995
Market: NA
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT290LXROADBUILDER jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT290LXROADBUILDER

How much does a Link-Belt BELT290LXROADBUILDER excavator weigh?

The official operating weight of the Link-Belt BELT290LXROADBUILDER hydraulic excavator is 29,800 kg (65,697.7 lbs) (29.8 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Link-Belt BELT290LXROADBUILDER?

The maximum digging depth for the Link-Belt BELT290LXROADBUILDER is 7.30 m (24.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT290LXROADBUILDER have?

The Link-Belt BELT290LXROADBUILDER is powered by a CC-6BG1TC powertrain delivering 207 HP (154 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT290LXROADBUILDER?

The Link-Belt BELT290LXROADBUILDER is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
