Link-Belt BELT290X2 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

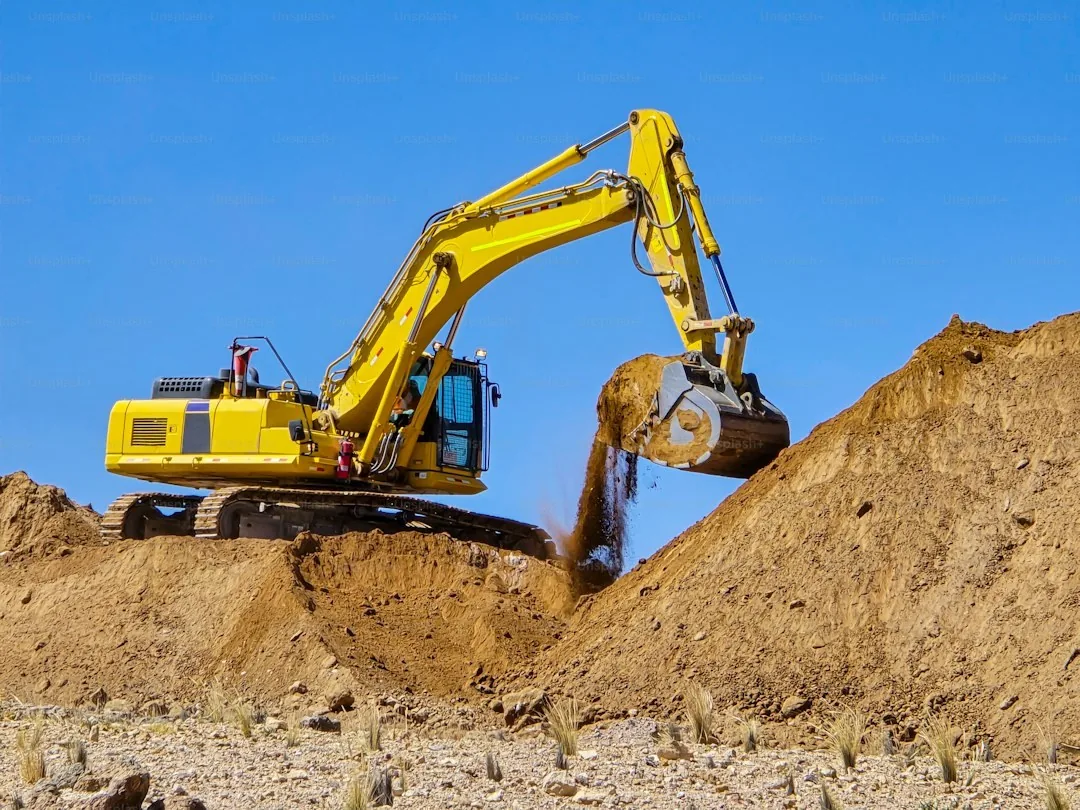

Caption: Link-Belt BELT290X2 Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT290X2

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight29.8 T Class
29,801 kg
≈ 65,699.9 lbs
Max Dig DepthGround Reach
6.72 m
≈ 22.1 ft
Net Engine PowerCrawler
207 HP
≈ 154 kW
Verified Technical Fact Sheet · Link-Belt BELT290X2

The official operating weight of the Link-Belt BELT290X2 is 29,801 kg (65,699.9 lbs), with a net engine output of 207 HP and a maximum digging depth of 6.72 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AH-6HK1XYSS
Net Power
207 HP (154 kW)
Gross Power
207 HP
Displacement
7.8 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
29,801 kg
Weight (lbs)
65,699.9 lbs
Hydraulic System Flow
486 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.45 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.72 m (22.1 ft)
Max Reach (Ground)
10.99 m
Max Dump Height
7.39 m
Shipping Width
3402 mm
Shipping Height
3463 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT290X2 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT290X2

How much does a Link-Belt BELT290X2 excavator weigh?

The official operating weight of the Link-Belt BELT290X2 hydraulic excavator is 29,801 kg (65,699.9 lbs) (29.8 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Link-Belt BELT290X2?

The maximum digging depth for the Link-Belt BELT290X2 is 6.72 m (22.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT290X2 have?

The Link-Belt BELT290X2 is powered by a AH-6HK1XYSS powertrain delivering 207 HP (154 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT290X2?

The Link-Belt BELT290X2 is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
