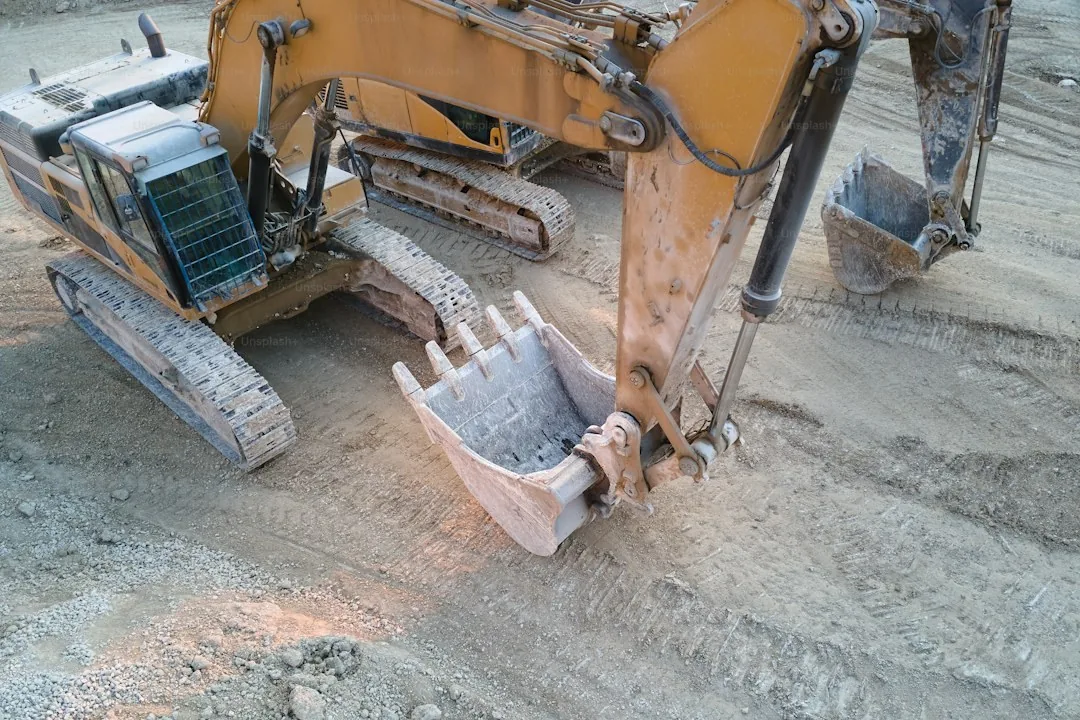

Caption: Link-Belt BELT330LXTIER3 Crawler Excavator in jobsite field operations
Hydraulic ExcavatorLink-Belt BELT330LXTIER3
Large Excavator (25 - 50t) · Crawler Chassis
Operating Weight35.6 T Class
35,607 kg
≈ 78,499.9 lbs
Max Dig DepthGround Reach
7.15 m
≈ 23.5 ft
Net Engine PowerCrawler
271 HP
≈ 202 kW
Advertisement
[ Ad Slot: model-mid-banner ]
Authentic In-Field Operation Footage
Real-world Link-Belt BELT330LXTIER3 jobsite telemetry & machine handling demonstration
Channel: Heavy Equipment Chicago
Engine & Powertrain
- Engine Make / Model
- AH-6HK1XYSS
- Net Power
- 271 HP (202 kW)
- Gross Power
- 271 HP
- Displacement
- 7.78 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulic Flow
- Operating Weight
- 35,607 kg
- Weight (lbs)
- 78,499.9 lbs
- Hydraulic Flow
- 567.8 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 1.22 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 7.15 m (23.5 ft)
- Max Reach (Ground)
- 11.72 m
- Max Dump Height
- 7.54 m
- Shipping Width
- 3402 mm
- Shipping Height
- 3511 mm
