Link-Belt BELT460LX Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

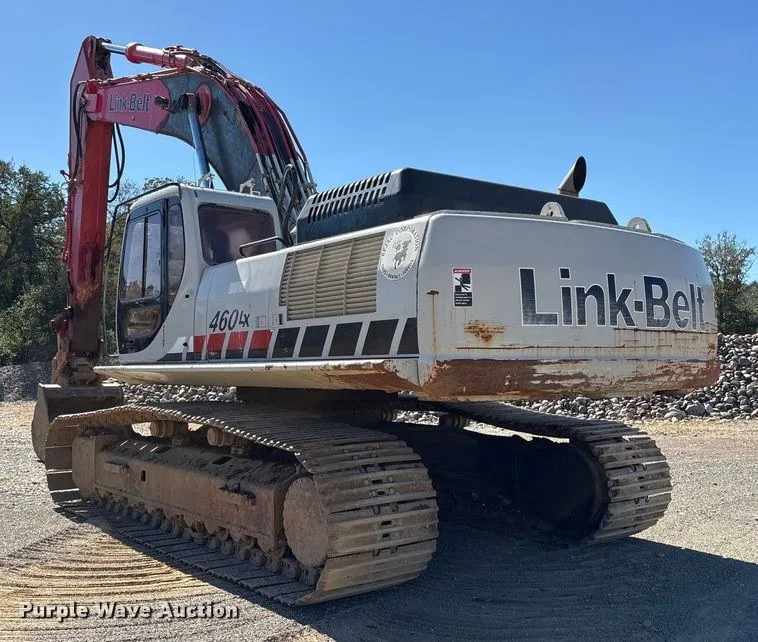

Caption: Link-Belt BELT460LX Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT460LX

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight45.9 T Class
45,904 kg
≈ 101,200.9 lbs
Max Dig DepthGround Reach
7.16 m
≈ 23.5 ft
Net Engine PowerCrawler
316 HP
≈ 236 kW
Verified Technical Fact Sheet · Link-Belt BELT460LX

The official operating weight of the Link-Belt BELT460LX is 45,904 kg (101,200.9 lbs), with a net engine output of 316 HP and a maximum digging depth of 7.16 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AA-6SD1XQB
Net Power
316 HP (236 kW)
Gross Power
316 HP
Displacement
9.83 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
45,904 kg
Weight (lbs)
101,200.9 lbs
Hydraulic System Flow
720 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.68 m³

Working Dimensions & Dig Depth

Max Digging Depth
7.16 m (23.5 ft)
Max Reach (Ground)
13.20 m
Max Dump Height
8.42 m
Shipping Width
3652 mm
Shipping Height
4392 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT460LX jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT460LX

How much does a Link-Belt BELT460LX excavator weigh?

The official operating weight of the Link-Belt BELT460LX hydraulic excavator is 45,904 kg (101,200.9 lbs) (45.9 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Link-Belt BELT460LX?

The maximum digging depth for the Link-Belt BELT460LX is 7.16 m (23.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT460LX have?

The Link-Belt BELT460LX is powered by a AA-6SD1XQB powertrain delivering 316 HP (236 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT460LX?

The Link-Belt BELT460LX is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
