Link-Belt BELT700LX Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

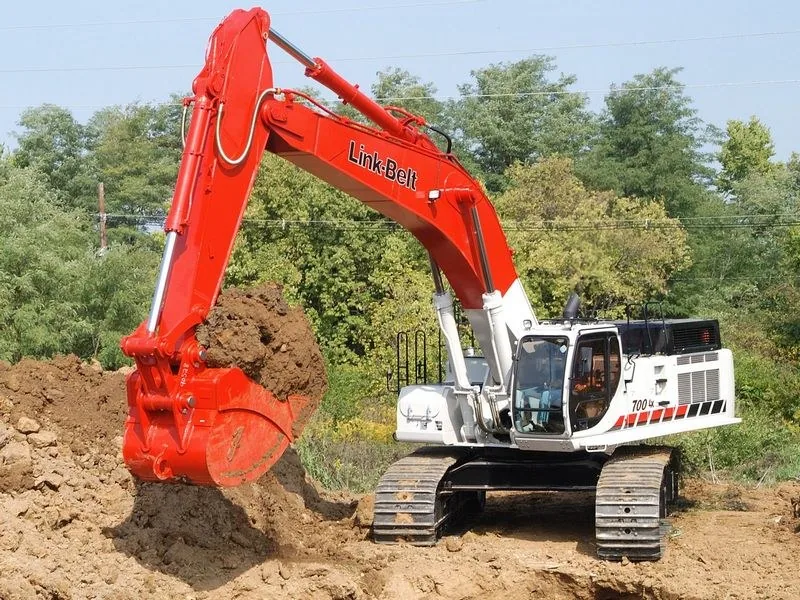

Caption: Link-Belt BELT700LX Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT700LX

Mining Excavator (> 50t) · Crawler Chassis

Operating Weight69.5 T Class
69,536 kg
≈ 153,300.5 lbs
Max Dig DepthGround Reach
7.36 m
≈ 24.2 ft
Net Engine PowerCrawler
425 HP
≈ 317 kW
Verified Technical Fact Sheet · Link-Belt BELT700LX

The official operating weight of the Link-Belt BELT700LX is 69,536 kg (153,300.5 lbs), with a net engine output of 425 HP and a maximum digging depth of 7.36 m. Classified as a Mining Excavator (> 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AH-6WG1X-S
Net Power
425 HP (317 kW)
Gross Power
425 HP
Displacement
15.7 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
69,536 kg
Weight (lbs)
153,300.5 lbs
Hydraulic System Flow
879.7 L/min
Fuel Tank Capacity
N/A
Standard Bucket
2.22 m³

Working Dimensions & Dig Depth

Max Digging Depth
7.36 m (24.2 ft)
Max Reach (Ground)
11.46 m
Max Dump Height
7.04 m
Shipping Width
4151 mm
Shipping Height
5160 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT700LX jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT700LX

How much does a Link-Belt BELT700LX excavator weigh?

The official operating weight of the Link-Belt BELT700LX hydraulic excavator is 69,536 kg (153,300.5 lbs) (69.5 metric tonnes), categorizing it within the Mining Excavator (> 50t) range.

What is the maximum digging depth of the Link-Belt BELT700LX?

The maximum digging depth for the Link-Belt BELT700LX is 7.36 m (24.2 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT700LX have?

The Link-Belt BELT700LX is powered by a AH-6WG1X-S powertrain delivering 425 HP (317 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT700LX?

The Link-Belt BELT700LX is classified as a Mining Excavator (> 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
