Link-Belt BELT75SPINACE Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

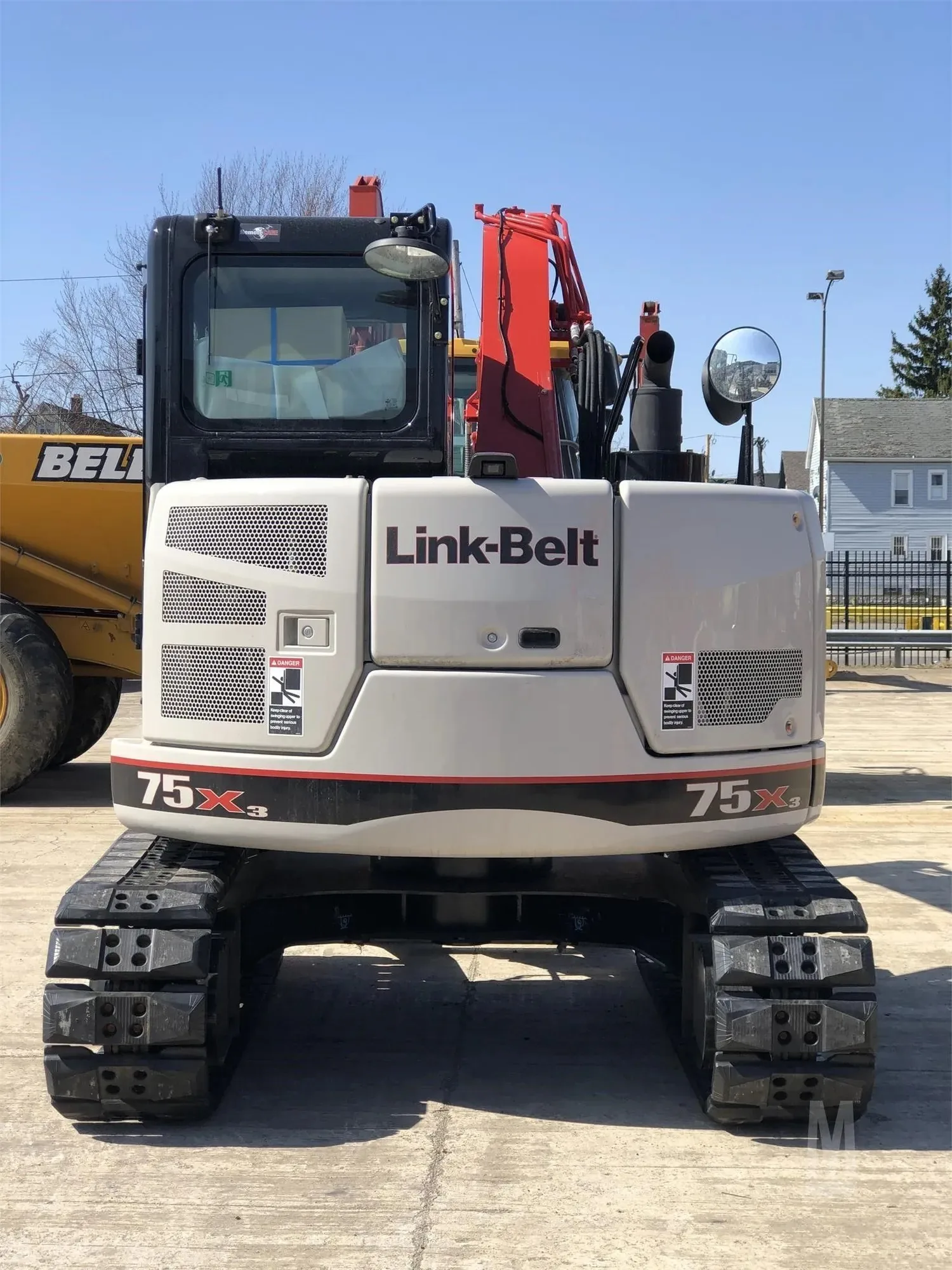

Caption: Link-Belt BELT75SPINACE Crawler Excavator in jobsite field operations

Link-Belt logoMidi Excavator

Link-Belt BELT75SPINACE

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight7.7 T Class
7,665 kg
≈ 16,898.4 lbs
Max Dig DepthGround Reach
3.26 m
≈ 10.7 ft
Net Engine PowerCrawler
52 HP
≈ 39 kW
Verified Technical Fact Sheet · Link-Belt BELT75SPINACE

The official operating weight of the Link-Belt BELT75SPINACE is 7,665 kg (16,898.4 lbs), with a net engine output of 52 HP and a maximum digging depth of 3.26 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
CC-4JG1
Net Power
52 HP (39 kW)
Gross Power
52 HP
Displacement
3.06 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
7,665 kg
Weight (lbs)
16,898.4 lbs
Hydraulic System Flow
143.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.31 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.26 m (10.7 ft)
Max Reach (Ground)
6.36 m
Max Dump Height
5.15 m
Shipping Width
2323 mm
Shipping Height
2972 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT75SPINACE jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT75SPINACE

How much does a Link-Belt BELT75SPINACE excavator weigh?

The official operating weight of the Link-Belt BELT75SPINACE hydraulic excavator is 7,665 kg (16,898.4 lbs) (7.7 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Link-Belt BELT75SPINACE?

The maximum digging depth for the Link-Belt BELT75SPINACE is 3.26 m (10.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT75SPINACE have?

The Link-Belt BELT75SPINACE is powered by a CC-4JG1 powertrain delivering 52 HP (39 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT75SPINACE?

The Link-Belt BELT75SPINACE is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
