Liugong 906 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: None

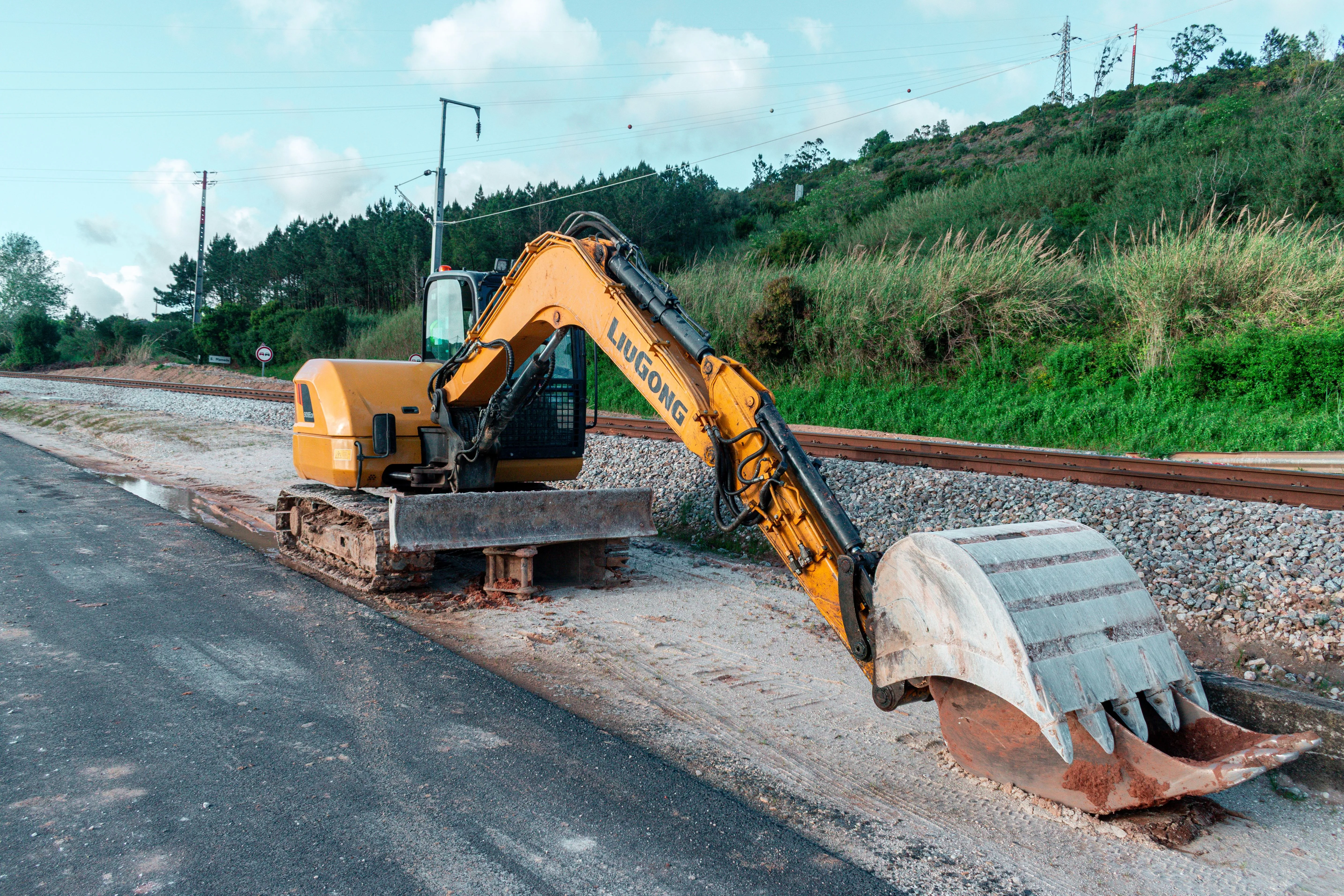

Caption: Liugong 906 Crawler Excavator in jobsite field operations

Liugong logoMidi Excavator

Liugong 906

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight7.4 T Class
7,400 kg
≈ 16,314.2 lbs
Max Dig DepthGround Reach
3.23 m
≈ 10.6 ft
Net Engine PowerCrawler
60.4 HP
≈ 45 kW
Verified Technical Fact Sheet · Liugong 906

The official operating weight of the Liugong 906 is 7,400 kg (16,314.2 lbs), with a net engine output of 60.4 HP and a maximum digging depth of 3.23 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
B3.3
Net Power
60.4 HP (45 kW)
Gross Power
60.4 HP
Displacement
3.3 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
7,400 kg
Weight (lbs)
16,314.2 lbs
Hydraulic System Flow
173.4 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.31 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.23 m (10.6 ft)
Max Reach (Ground)
6.25 m
Max Dump Height
5.09 m
Shipping Width
2164 mm
Shipping Height
2621 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Liugong Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Liugong 906 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Liugong 906

How much does a Liugong 906 excavator weigh?

The official operating weight of the Liugong 906 hydraulic excavator is 7,400 kg (16,314.2 lbs) (7.4 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Liugong 906?

The maximum digging depth for the Liugong 906 is 3.23 m (10.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Liugong 906 have?

The Liugong 906 is powered by a B3.3 powertrain delivering 60.4 HP (45 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Liugong 906?

The Liugong 906 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
