Nagano NS25 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

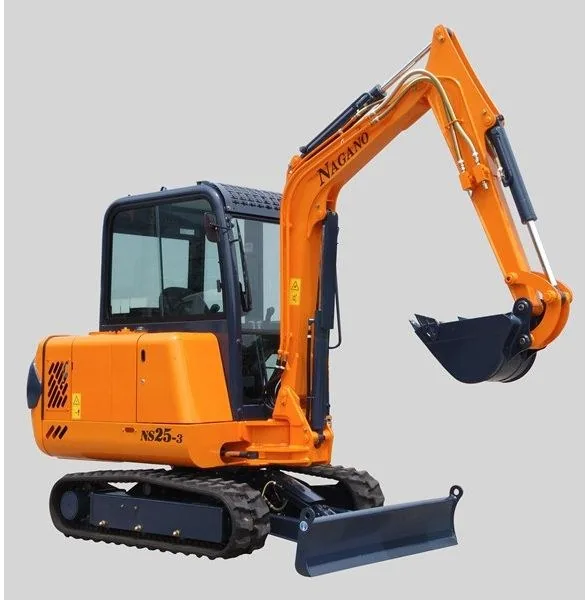

Caption: Nagano NS25 Crawler Excavator in jobsite field operations

Nagano logoMini Excavator

Nagano NS25

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight2.8 T Class
2,820 kg
≈ 6,217 lbs
Max Dig DepthGround Reach
1.87 m
≈ 6.1 ft
Net Engine PowerCrawler
N/A
≈ N/A
Verified Technical Fact Sheet · Nagano NS25

The official operating weight of the Nagano NS25 is 2,820 kg (6,217 lbs), with a net engine output of N/A and a maximum digging depth of 1.87 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
Manufacturer Proprietary
Net Power
N/A
Gross Power
23.8 HP
Displacement
1.32 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
2,820 kg
Weight (lbs)
6,217 lbs
Hydraulic System Flow
56 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.08 m³

Working Dimensions & Dig Depth

Max Digging Depth
1.87 m (6.1 ft)
Max Reach (Ground)
4.59 m
Max Dump Height
3.02 m
Shipping Width
1472 mm
Shipping Height
2387 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Nagano Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Nagano NS25 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Nagano NS25

How much does a Nagano NS25 excavator weigh?

The official operating weight of the Nagano NS25 hydraulic excavator is 2,820 kg (6,217 lbs) (2.8 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Nagano NS25?

The maximum digging depth for the Nagano NS25 is 1.87 m (6.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Nagano NS25 have?

The Nagano NS25 is powered by a Nagano OEM powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Nagano NS25?

The Nagano NS25 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
