Samsung SE240LC3LONGREACH Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

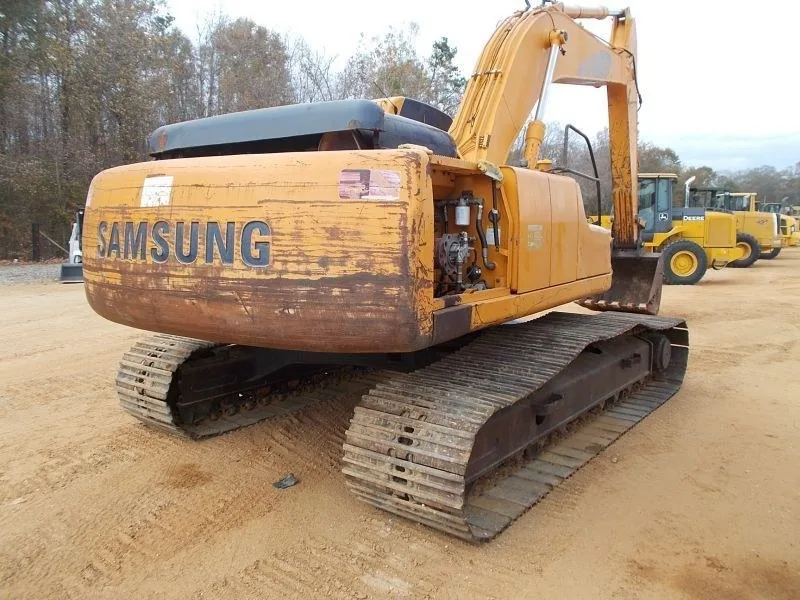

Caption: Samsung SE240LC3LONGREACH Crawler Excavator in jobsite field operations

Samsung logoHydraulic Excavator

Samsung SE240LC3LONGREACH

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight26.2 T Class
26,240 kg
≈ 57,849.2 lbs
Max Dig DepthGround Reach
18.21 m
≈ 59.8 ft
Net Engine PowerCrawler
N/A
≈ N/A
Verified Technical Fact Sheet · Samsung SE240LC3LONGREACH

The official operating weight of the Samsung SE240LC3LONGREACH is 26,240 kg (57,849.2 lbs), with a net engine output of N/A and a maximum digging depth of 18.21 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
C8.3-C
Net Power
N/A
Gross Power
168 HP
Displacement
5.9 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
26,240 kg
Weight (lbs)
57,849.2 lbs
Hydraulic System Flow
460.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.54 m³

Working Dimensions & Dig Depth

Max Digging Depth
18.21 m (59.8 ft)
Max Reach (Ground)
18.31 m
Max Dump Height
12.58 m
Shipping Width
3392 mm
Shipping Height
3173 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Samsung Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Samsung SE240LC3LONGREACH jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Samsung SE240LC3LONGREACH

How much does a Samsung SE240LC3LONGREACH excavator weigh?

The official operating weight of the Samsung SE240LC3LONGREACH hydraulic excavator is 26,240 kg (57,849.2 lbs) (26.2 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Samsung SE240LC3LONGREACH?

The maximum digging depth for the Samsung SE240LC3LONGREACH is 18.21 m (59.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Samsung SE240LC3LONGREACH have?

The Samsung SE240LC3LONGREACH is powered by a C8.3-C powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Samsung SE240LC3LONGREACH?

The Samsung SE240LC3LONGREACH is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
