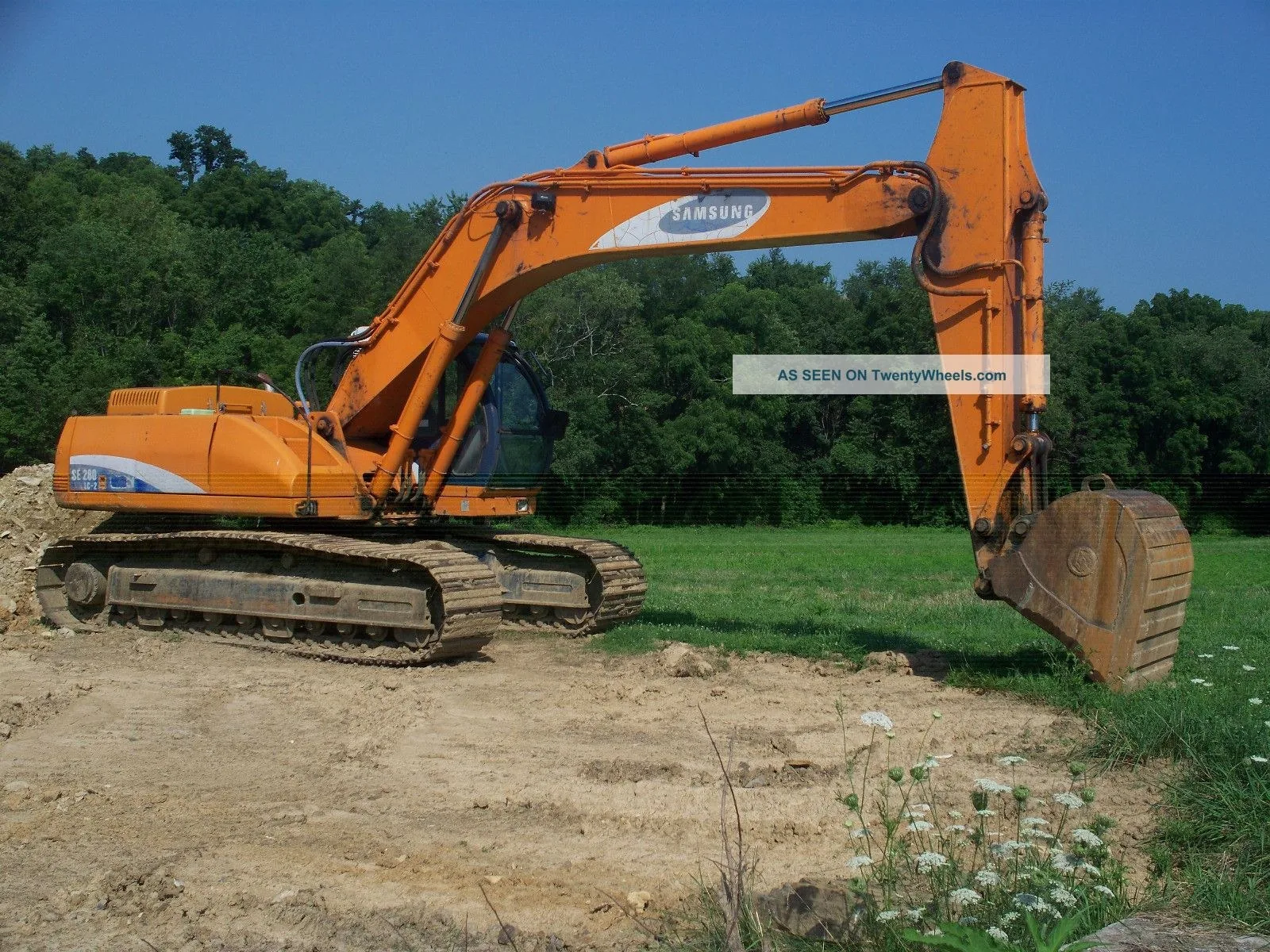

Caption: Samsung SE280LC3 Crawler Excavator in jobsite field operations
Samsung SE280LC3
Large Excavator (25 - 50t) · Crawler Chassis
The official operating weight of the Samsung SE280LC3 is 27,800 kg (61,288.4 lbs), with a net engine output of 197 HP and a maximum digging depth of 7.03 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- C8.3-C
- Net Power
- 197 HP (147 kW)
- Gross Power
- 215 HP
- Displacement
- 8.27 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 27,800 kg
- Weight (lbs)
- 61,288.4 lbs
- Hydraulic System Flow
- 500.1 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 1.3 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 7.03 m (23.1 ft)
- Max Reach (Ground)
- 11.40 m
- Max Dump Height
- 7.45 m
- Shipping Width
- 3191 mm
- Shipping Height
- 3621 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Samsung SE280LC3 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Samsung SE280LC3
How much does a Samsung SE280LC3 excavator weigh?
The official operating weight of the Samsung SE280LC3 hydraulic excavator is 27,800 kg (61,288.4 lbs) (27.8 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.
What is the maximum digging depth of the Samsung SE280LC3?
The maximum digging depth for the Samsung SE280LC3 is 7.03 m (23.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Samsung SE280LC3 have?
The Samsung SE280LC3 is powered by a C8.3-C powertrain delivering 197 HP (147 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Samsung SE280LC3?
The Samsung SE280LC3 is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
More from Samsung
Direct Competitors & Alternatives
