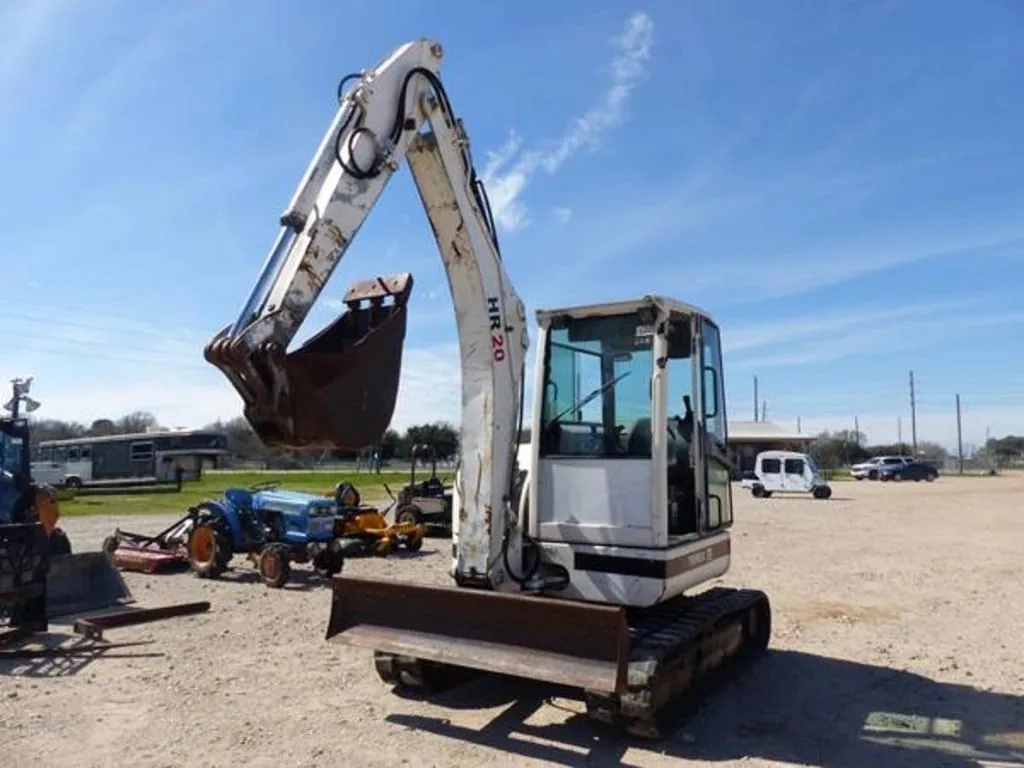

Caption: Terex HR20 Crawler Excavator in jobsite field operations
Terex HR20
Mini Excavator (2 - 6t) · Crawler Chassis
The official operating weight of the Terex HR20 is 2,000 kg (4,409.2 lbs), with a net engine output of 18 HP and a maximum digging depth of 1.13 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- L3E-W 262 KL
- Net Power
- 18 HP (13 kW)
- Gross Power
- 18 HP
- Displacement
- 0.95 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 2,000 kg
- Weight (lbs)
- 4,409.2 lbs
- Hydraulic System Flow
- 58.3 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.08 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 1.13 m (3.7 ft)
- Max Reach (Ground)
- 4.37 m
- Max Dump Height
- 2.72 m
- Shipping Width
- 1003 mm
- Shipping Height
- N/A
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Terex HR20 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Terex HR20
How much does a Terex HR20 excavator weigh?
The official operating weight of the Terex HR20 hydraulic excavator is 2,000 kg (4,409.2 lbs) (2 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.
What is the maximum digging depth of the Terex HR20?
The maximum digging depth for the Terex HR20 is 1.13 m (3.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Terex HR20 have?
The Terex HR20 is powered by a L3E-W 262 KL powertrain delivering 18 HP (13 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Terex HR20?
The Terex HR20 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
