Terex TC16 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

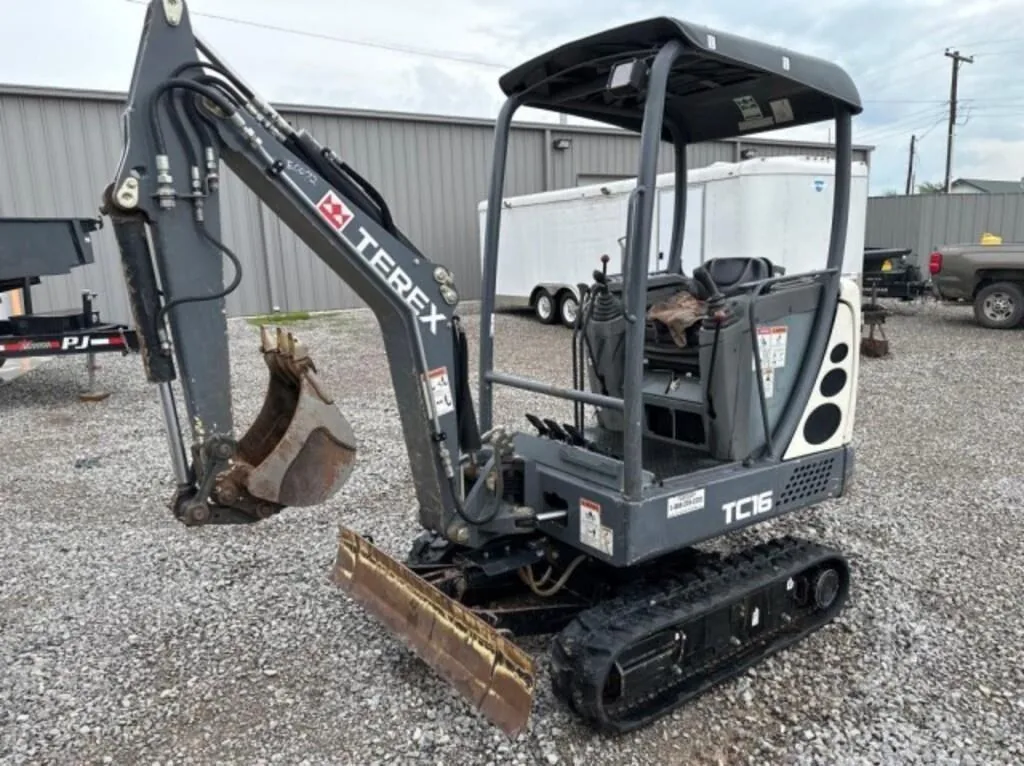

Caption: Terex TC16 Crawler Excavator in jobsite field operations

Terex logoMini Excavator

Terex TC16

Micro Excavator (< 2t) · Crawler Chassis

Operating Weight1.7 T Class
1,720 kg
≈ 3,791.9 lbs
Max Dig DepthGround Reach
1.13 m
≈ 3.7 ft
Net Engine PowerCrawler
18 HP
≈ 13 kW
Verified Technical Fact Sheet · Terex TC16

The official operating weight of the Terex TC16 is 1,720 kg (3,791.9 lbs), with a net engine output of 18 HP and a maximum digging depth of 1.13 m. Classified as a Micro Excavator (< 2t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
L3E-W 262 KL
Net Power
18 HP (13 kW)
Gross Power
18 HP
Displacement
0.95 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
1,720 kg
Weight (lbs)
3,791.9 lbs
Hydraulic System Flow
53 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.08 m³

Working Dimensions & Dig Depth

Max Digging Depth
1.13 m (3.7 ft)
Max Reach (Ground)
N/A
Max Dump Height
2.32 m
Shipping Width
1006 mm
Shipping Height
2408 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Terex Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Terex TC16 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Terex TC16

How much does a Terex TC16 excavator weigh?

The official operating weight of the Terex TC16 hydraulic excavator is 1,720 kg (3,791.9 lbs) (1.7 metric tonnes), categorizing it within the Micro Excavator (< 2t) range.

What is the maximum digging depth of the Terex TC16?

The maximum digging depth for the Terex TC16 is 1.13 m (3.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Terex TC16 have?

The Terex TC16 is powered by a L3E-W 262 KL powertrain delivering 18 HP (13 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Terex TC16?

The Terex TC16 is classified as a Micro Excavator (< 2t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
