Terex TXC180LC2 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

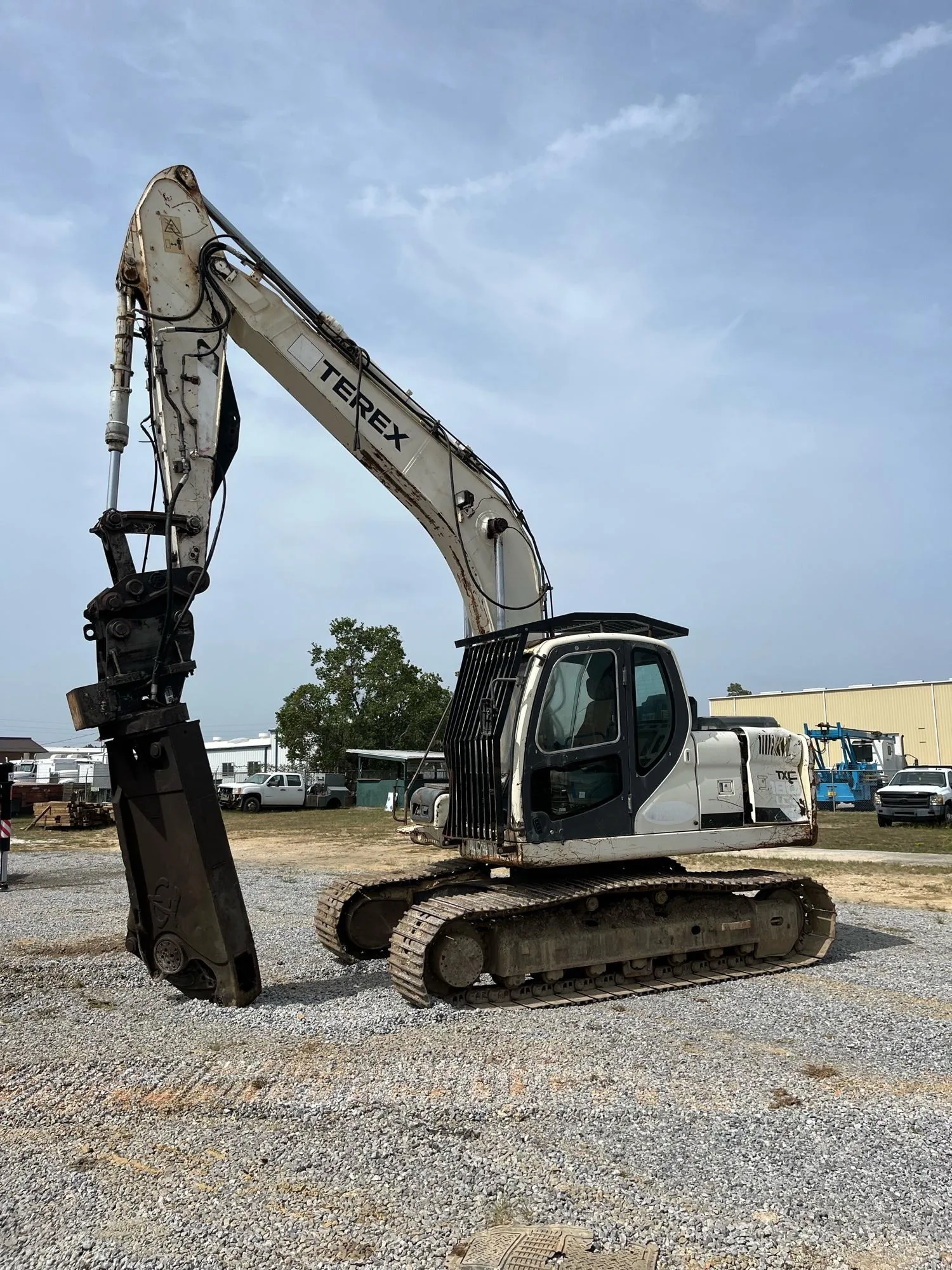

Caption: Terex TXC180LC2 Crawler Excavator in jobsite field operations

Terex logoHydraulic Excavator

Terex TXC180LC2

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight17.7 T Class
17,660 kg
≈ 38,933.6 lbs
Max Dig DepthGround Reach
5.13 m
≈ 16.8 ft
Net Engine PowerCrawler
118 HP
≈ 88 kW
Verified Technical Fact Sheet · Terex TXC180LC2

The official operating weight of the Terex TXC180LC2 is 17,660 kg (38,933.6 lbs), with a net engine output of 118 HP and a maximum digging depth of 5.13 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
DL06
Net Power
118 HP (88 kW)
Gross Power
118 HP
Displacement
5.88 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
17,660 kg
Weight (lbs)
38,933.6 lbs
Hydraulic System Flow
304.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.76 m³

Working Dimensions & Dig Depth

Max Digging Depth
5.13 m (16.8 ft)
Max Reach (Ground)
9.34 m
Max Dump Height
6.49 m
Shipping Width
2801 mm
Shipping Height
3167 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Terex Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Terex TXC180LC2 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Terex TXC180LC2

How much does a Terex TXC180LC2 excavator weigh?

The official operating weight of the Terex TXC180LC2 hydraulic excavator is 17,660 kg (38,933.6 lbs) (17.7 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Terex TXC180LC2?

The maximum digging depth for the Terex TXC180LC2 is 5.13 m (16.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Terex TXC180LC2 have?

The Terex TXC180LC2 is powered by a DL06 powertrain delivering 118 HP (88 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Terex TXC180LC2?

The Terex TXC180LC2 is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
