Terex TXC225LC2 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

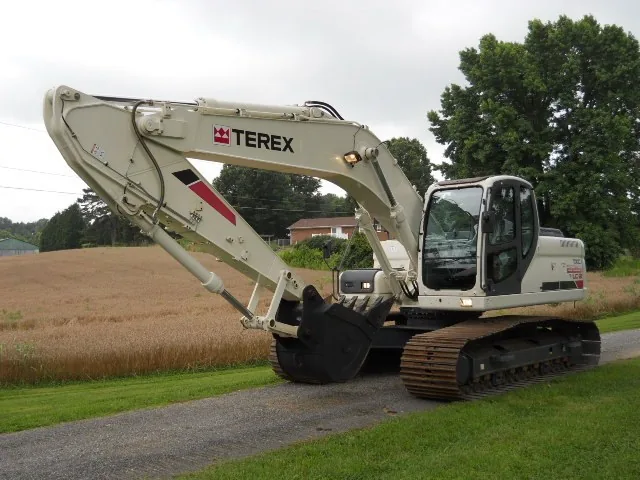

Caption: Terex TXC225LC2 Crawler Excavator in jobsite field operations

Terex logoHydraulic Excavator

Terex TXC225LC2

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight21.5 T Class
21,500 kg
≈ 47,399.3 lbs
Max Dig DepthGround Reach
6.01 m
≈ 19.7 ft
Net Engine PowerCrawler
148 HP
≈ 110 kW
Verified Technical Fact Sheet · Terex TXC225LC2

The official operating weight of the Terex TXC225LC2 is 21,500 kg (47,399.3 lbs), with a net engine output of 148 HP and a maximum digging depth of 6.01 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
DL06
Net Power
148 HP (110 kW)
Gross Power
148 HP
Displacement
5.88 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
21,500 kg
Weight (lbs)
47,399.3 lbs
Hydraulic System Flow
413.4 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.3 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.01 m (19.7 ft)
Max Reach (Ground)
15.27 m
Max Dump Height
11.15 m
Shipping Width
2990 mm
Shipping Height
3255 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Terex Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Terex TXC225LC2 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Terex TXC225LC2

How much does a Terex TXC225LC2 excavator weigh?

The official operating weight of the Terex TXC225LC2 hydraulic excavator is 21,500 kg (47,399.3 lbs) (21.5 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Terex TXC225LC2?

The maximum digging depth for the Terex TXC225LC2 is 6.01 m (19.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Terex TXC225LC2 have?

The Terex TXC225LC2 is powered by a DL06 powertrain delivering 148 HP (110 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Terex TXC225LC2?

The Terex TXC225LC2 is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
