Terex TXC340LC1 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

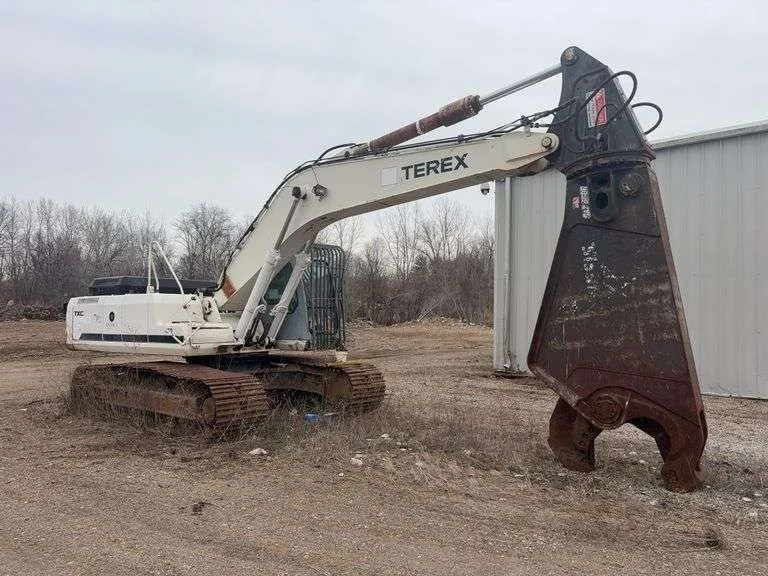

Caption: Terex TXC340LC1 Crawler Excavator in jobsite field operations

Terex logoHydraulic Excavator

Terex TXC340LC1

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight34.7 T Class
34,700 kg
≈ 76,500.3 lbs
Max Dig DepthGround Reach
6.99 m
≈ 22.9 ft
Net Engine PowerCrawler
247 HP
≈ 184 kW
Verified Technical Fact Sheet · Terex TXC340LC1

The official operating weight of the Terex TXC340LC1 is 34,700 kg (76,500.3 lbs), with a net engine output of 247 HP and a maximum digging depth of 6.99 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
DE12TIS
Net Power
247 HP (184 kW)
Gross Power
250 HP
Displacement
11.06 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
34,700 kg
Weight (lbs)
76,500.3 lbs
Hydraulic System Flow
532.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.53 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.99 m (22.9 ft)
Max Reach (Ground)
11.81 m
Max Dump Height
7.64 m
Shipping Width
3200 mm
Shipping Height
3365 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Terex Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Terex TXC340LC1 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Terex TXC340LC1

How much does a Terex TXC340LC1 excavator weigh?

The official operating weight of the Terex TXC340LC1 hydraulic excavator is 34,700 kg (76,500.3 lbs) (34.7 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Terex TXC340LC1?

The maximum digging depth for the Terex TXC340LC1 is 6.99 m (22.9 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Terex TXC340LC1 have?

The Terex TXC340LC1 is powered by a DE12TIS powertrain delivering 247 HP (184 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Terex TXC340LC1?

The Terex TXC340LC1 is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
