Volvo EC14 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

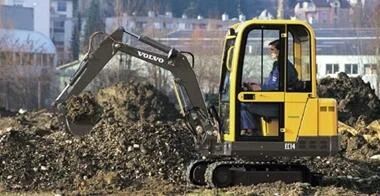

Caption: Volvo EC14 Crawler Excavator in jobsite field operations

Volvo logoMini Excavator

Volvo EC14

Micro Excavator (< 2t) · Crawler Chassis

Operating Weight1.5 T Class
1,530 kg
≈ 3,373.1 lbs
Max Dig DepthGround Reach
2.00 m
≈ 6.6 ft
Net Engine PowerCrawler
15.2 HP
≈ 11 kW
Verified Technical Fact Sheet · Volvo EC14

The official operating weight of the Volvo EC14 is 1,530 kg (3,373.1 lbs), with a net engine output of 15.2 HP and a maximum digging depth of 2.00 m. Classified as a Micro Excavator (< 2t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
L3E
Net Power
15.2 HP (11 kW)
Gross Power
18.8 HP
Displacement
0.95 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
1,530 kg
Weight (lbs)
3,373.1 lbs
Hydraulic System Flow
32.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.08 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.00 m (6.6 ft)
Max Reach (Ground)
3.56 m
Max Dump Height
2.33 m
Shipping Width
981 mm
Shipping Height
2192 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC14 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC14

How much does a Volvo EC14 excavator weigh?

The official operating weight of the Volvo EC14 hydraulic excavator is 1,530 kg (3,373.1 lbs) (1.5 metric tonnes), categorizing it within the Micro Excavator (< 2t) range.

What is the maximum digging depth of the Volvo EC14?

The maximum digging depth for the Volvo EC14 is 2.00 m (6.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC14 have?

The Volvo EC14 is powered by a L3E powertrain delivering 15.2 HP (11 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC14?

The Volvo EC14 is classified as a Micro Excavator (< 2t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
