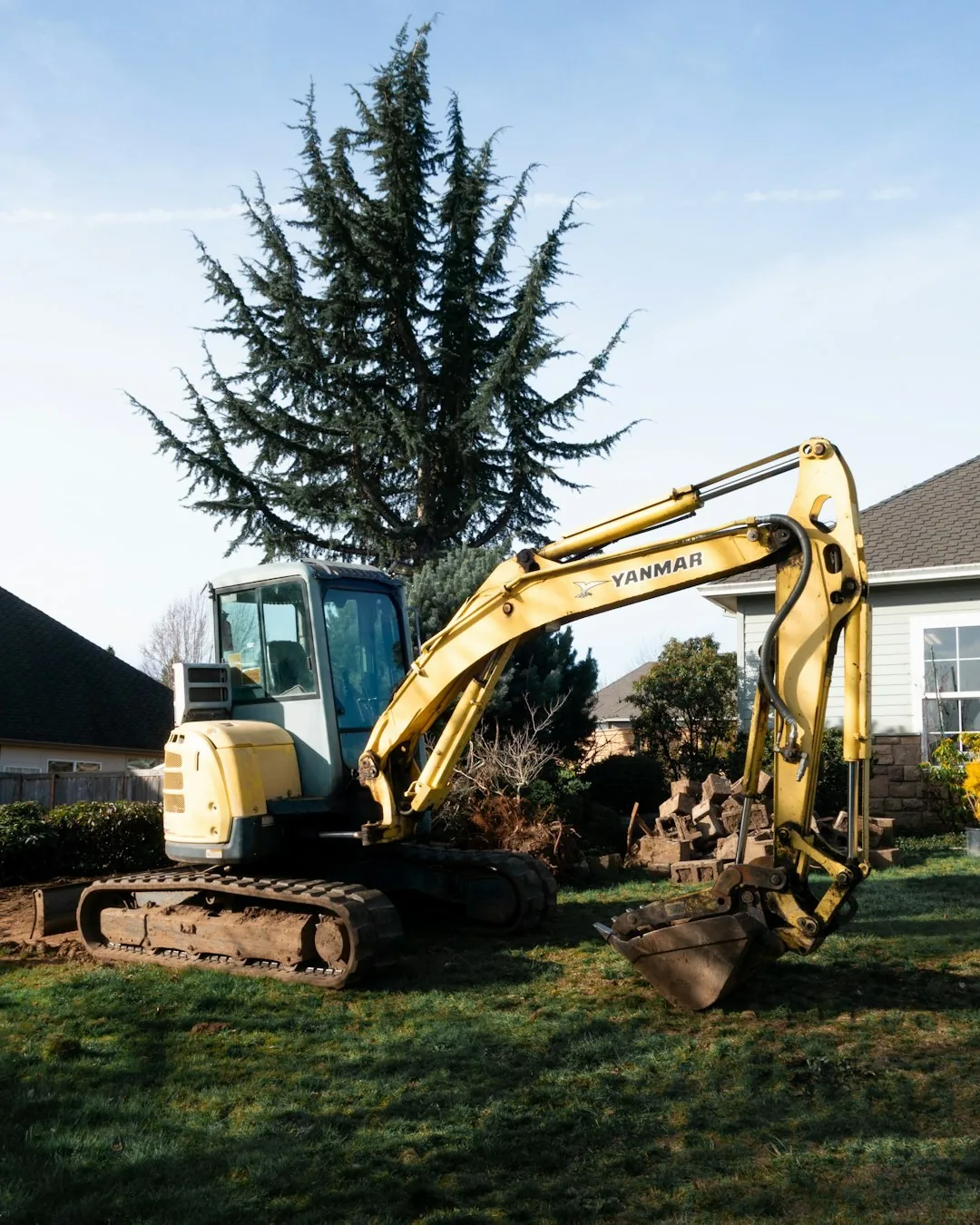

Caption: Yanmar SV100 Crawler Excavator in jobsite field operations
Yanmar SV100
Source-VerifiedMidi Excavator (6 - 10t) · Crawler Chassis
The official operating weight of the Yanmar SV100 is 9,585 kg (21,131.3 lbs), with a net engine output of 72 HP and a maximum digging depth of 4.53 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- 4TNV98T-SBV
- Net Power
- 72 HP (54 kW)
- Gross Power
- 73.5 HP
- Displacement
- 3.4 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 9,585 kg
- Weight (lbs)
- 21,131.3 lbs
- Hydraulic System Flow
- 150 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.31 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 4.53 m (14.9 ft)
- Max Reach (Ground)
- 4.90 m
- Max Dump Height
- 4.96 m
- Shipping Width
- 2323 mm
- Shipping Height
- 2832 mm
Source & Configuration
Yanmar SV100 Official Specification Sheet
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Yanmar SV100 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Yanmar SV100
How much does a Yanmar SV100 excavator weigh?
The official operating weight of the Yanmar SV100 hydraulic excavator is 9,585 kg (21,131.3 lbs) (9.6 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.
What is the maximum digging depth of the Yanmar SV100?
The maximum digging depth for the Yanmar SV100 is 4.53 m (14.9 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Yanmar SV100 have?
The Yanmar SV100 is powered by a 4TNV98T-SBV powertrain delivering 72 HP (54 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Yanmar SV100?
The Yanmar SV100 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
