Zoomlion ZE230 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

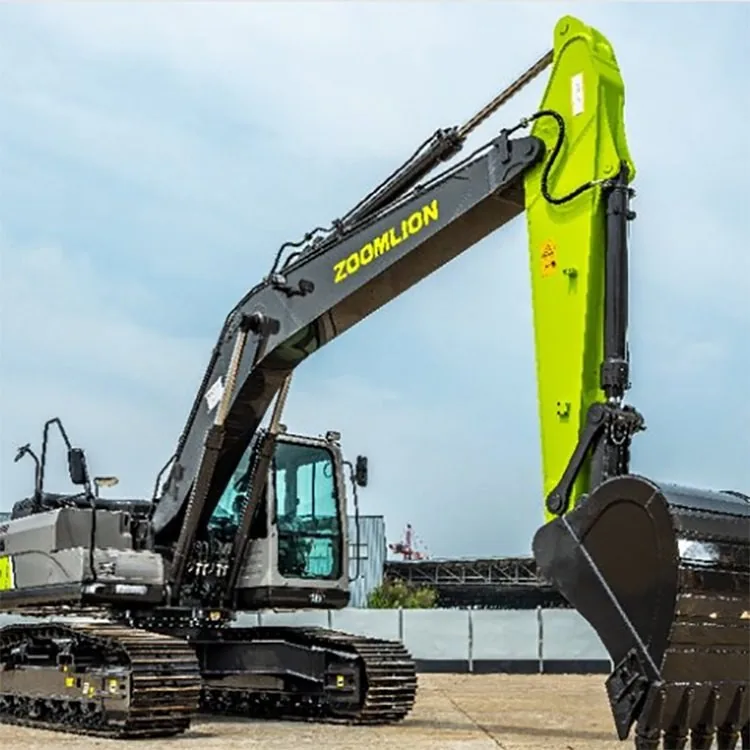

Caption: Zoomlion ZE230 Crawler Excavator in jobsite field operations

Zoomlion logoHydraulic Excavator

Zoomlion ZE230

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight22.6 T Class
22,600 kg
≈ 49,824.4 lbs
Max Dig DepthGround Reach
6.61 m
≈ 21.7 ft
Net Engine PowerCrawler
N/A
≈ N/A
Verified Technical Fact Sheet · Zoomlion ZE230

The official operating weight of the Zoomlion ZE230 is 22,600 kg (49,824.4 lbs), with a net engine output of N/A and a maximum digging depth of 6.61 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
6BTA5.9-C167
Net Power
N/A
Gross Power
167.7 HP
Displacement
N/A
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
22,600 kg
Weight (lbs)
49,824.4 lbs
Hydraulic System Flow
N/A
Fuel Tank Capacity
N/A
Standard Bucket
1.07 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.61 m (21.7 ft)
Max Reach (Ground)
10.06 m
Max Dump Height
6.80 m
Shipping Width
2990 mm
Shipping Height
3002 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Zoomlion Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Zoomlion ZE230 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Zoomlion ZE230

How much does a Zoomlion ZE230 excavator weigh?

The official operating weight of the Zoomlion ZE230 hydraulic excavator is 22,600 kg (49,824.4 lbs) (22.6 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Zoomlion ZE230?

The maximum digging depth for the Zoomlion ZE230 is 6.61 m (21.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Zoomlion ZE230 have?

The Zoomlion ZE230 is powered by a 6BTA5.9-C167 powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Zoomlion ZE230?

The Zoomlion ZE230 is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
