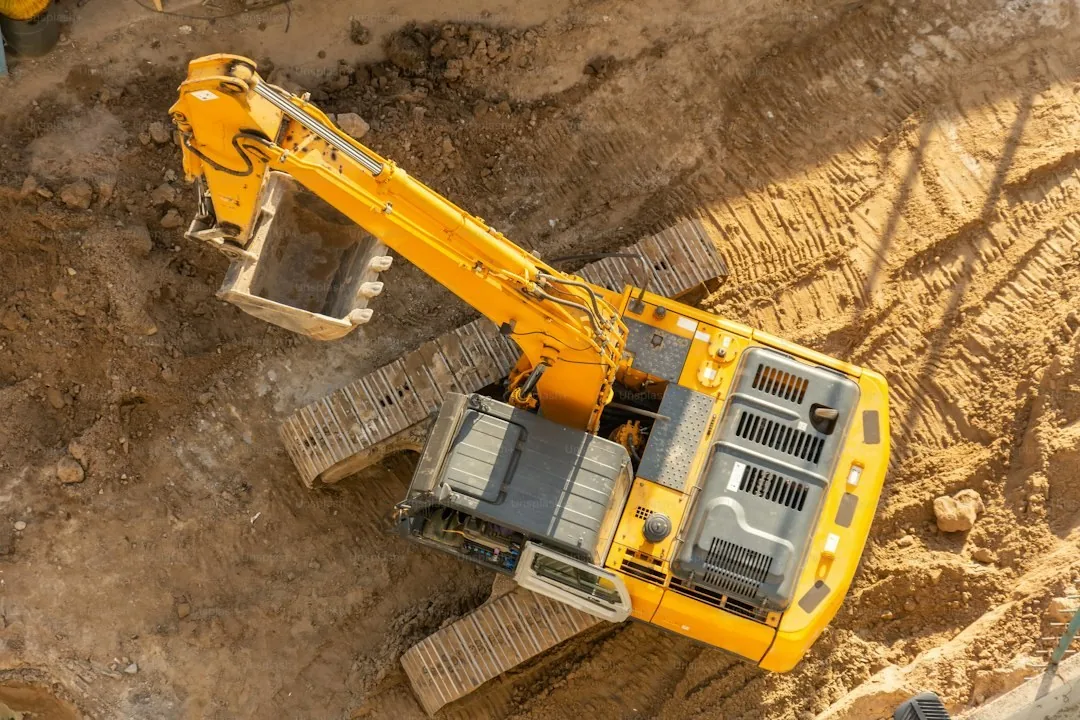

Caption: Link-Belt BELT130LX Crawler Excavator in jobsite field operations
Hydraulic ExcavatorLink-Belt BELT130LX
Medium Excavator (10 - 25t) · Crawler Chassis
Operating Weight12.3 T Class
12,292 kg
≈ 27,099.2 lbs
Max Dig DepthGround Reach
5.34 m
≈ 17.5 ft
Net Engine PowerCrawler
89 HP
≈ 66 kW
Advertisement
[ Ad Slot: model-mid-banner ]
Authentic In-Field Operation Footage
Real-world Link-Belt BELT130LX jobsite telemetry & machine handling demonstration
Channel: letsdig18
Engine & Powertrain
- Engine Make / Model
- BB-4BG1T
- Net Power
- 89 HP (66 kW)
- Gross Power
- 89 HP
- Displacement
- 4.33 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulic Flow
- Operating Weight
- 12,292 kg
- Weight (lbs)
- 27,099.2 lbs
- Hydraulic Flow
- 245.3 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.54 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 5.34 m (17.5 ft)
- Max Reach (Ground)
- 8.61 m
- Max Dump Height
- 7.06 m
- Shipping Width
- 2591 mm
- Shipping Height
- 2783 mm
