Link-Belt BELT240LXLONGFRONT Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

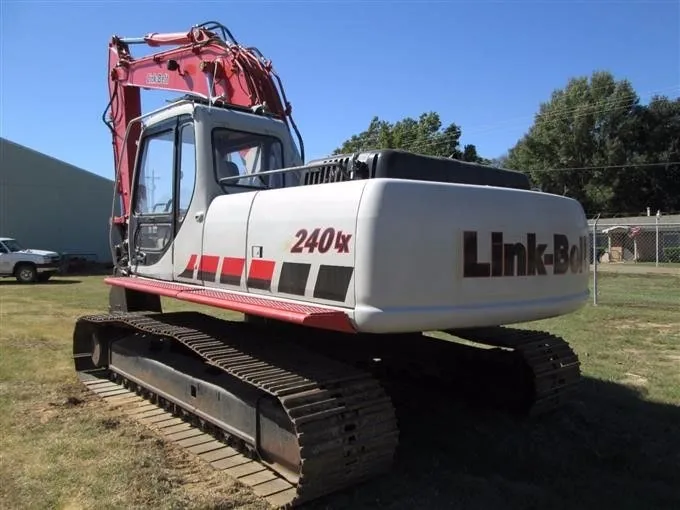

Caption: Link-Belt BELT240LXLONGFRONT Crawler Excavator in jobsite field operations

Link-Belt logoHydraulic Excavator

Link-Belt BELT240LXLONGFRONT

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight27.7 T Class
27,714 kg
≈ 61,098.8 lbs
Max Dig DepthGround Reach
12.18 m
≈ 40.0 ft
Net Engine PowerCrawler
162 HP
≈ 121 kW
Verified Technical Fact Sheet · Link-Belt BELT240LXLONGFRONT

The official operating weight of the Link-Belt BELT240LXLONGFRONT is 27,714 kg (61,098.8 lbs), with a net engine output of 162 HP and a maximum digging depth of 12.18 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
BB-6BG1T
Net Power
162 HP (121 kW)
Gross Power
162 HP
Displacement
6.49 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
27,714 kg
Weight (lbs)
61,098.8 lbs
Hydraulic System Flow
424 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.69 m³

Working Dimensions & Dig Depth

Max Digging Depth
12.18 m (40 ft)
Max Reach (Ground)
18.27 m
Max Dump Height
11.54 m
Shipping Width
3392 mm
Shipping Height
3103 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Link-Belt Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Link-Belt BELT240LXLONGFRONT jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Link-Belt BELT240LXLONGFRONT

How much does a Link-Belt BELT240LXLONGFRONT excavator weigh?

The official operating weight of the Link-Belt BELT240LXLONGFRONT hydraulic excavator is 27,714 kg (61,098.8 lbs) (27.7 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Link-Belt BELT240LXLONGFRONT?

The maximum digging depth for the Link-Belt BELT240LXLONGFRONT is 12.18 m (40.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Link-Belt BELT240LXLONGFRONT have?

The Link-Belt BELT240LXLONGFRONT is powered by a BB-6BG1T powertrain delivering 162 HP (121 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Link-Belt BELT240LXLONGFRONT?

The Link-Belt BELT240LXLONGFRONT is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
