Sany SY26U Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: eartharchive

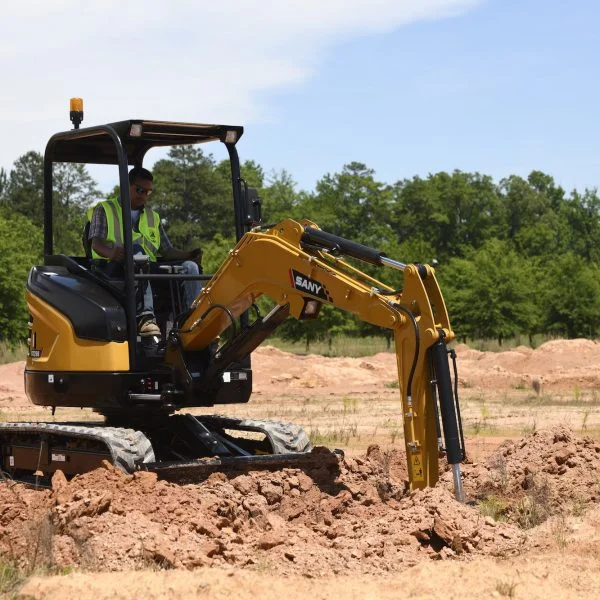

Caption: Sany SY26U Crawler Excavator in jobsite field operations

Sany logoHydraulic Excavator

Sany SY26U

Source-Verified

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight2.8 T Class
2,780 kg
≈ 6,128.8 lbs
Max Dig DepthGround Reach
2.82 m
≈ 9.3 ft
Net Engine PowerCrawler
19.6 HP
≈ 15 kW
Verified Technical Fact Sheet · Sany SY26U

The official operating weight of the Sany SY26U is 2,780 kg (6,128.8 lbs), with a net engine output of 19.6 HP and a maximum digging depth of 2.82 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
Manufacturer Proprietary
Net Power
19.6 HP (15 kW)
Gross Power
20.9 HP
Displacement
N/A
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
2,780 kg
Weight (lbs)
6,128.8 lbs
Hydraulic System Flow
72 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
2.82 m (9.3 ft)
Max Reach (Ground)
N/A
Max Dump Height
N/A
Shipping Width
1550 mm
Shipping Height
2430 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Sany

Sany SY26U Technical Specifications

Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Region: NA
Engine Rating Standards
Net: ISO 9249
Gross: ISO 14396
Market: NA
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Sany SY26U jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Sany SY26U

How much does a Sany SY26U excavator weigh?

The official operating weight of the Sany SY26U hydraulic excavator is 2,780 kg (6,128.8 lbs) (2.8 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Sany SY26U?

The maximum digging depth for the Sany SY26U is 2.82 m (9.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Sany SY26U have?

The Sany SY26U is powered by a Sany OEM powertrain delivering 19.6 HP (15 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Sany SY26U?

The Sany SY26U is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
