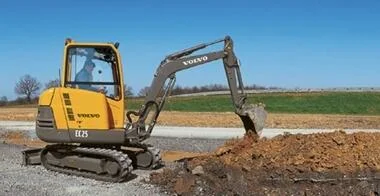

Caption: Volvo EC25 Crawler Excavator in jobsite field operations
Volvo EC25
Mini Excavator (2 - 6t) · Crawler Chassis
The official operating weight of the Volvo EC25 is 2,790 kg (6,150.9 lbs), with a net engine output of 22.9 HP and a maximum digging depth of 2.29 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- S3L2
- Net Power
- 22.9 HP (17 kW)
- Gross Power
- 26.8 HP
- Displacement
- 1.31 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 2,790 kg
- Weight (lbs)
- 6,150.9 lbs
- Hydraulic System Flow
- 62.1 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.08 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 2.29 m (7.5 ft)
- Max Reach (Ground)
- 4.75 m
- Max Dump Height
- 3.32 m
- Shipping Width
- 1481 mm
- Shipping Height
- 2393 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Volvo EC25 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Volvo EC25
How much does a Volvo EC25 excavator weigh?
The official operating weight of the Volvo EC25 hydraulic excavator is 2,790 kg (6,150.9 lbs) (2.8 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.
What is the maximum digging depth of the Volvo EC25?
The maximum digging depth for the Volvo EC25 is 2.29 m (7.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Volvo EC25 have?
The Volvo EC25 is powered by a S3L2 powertrain delivering 22.9 HP (17 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Volvo EC25?
The Volvo EC25 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
