Sany SY500H Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: eartharchive

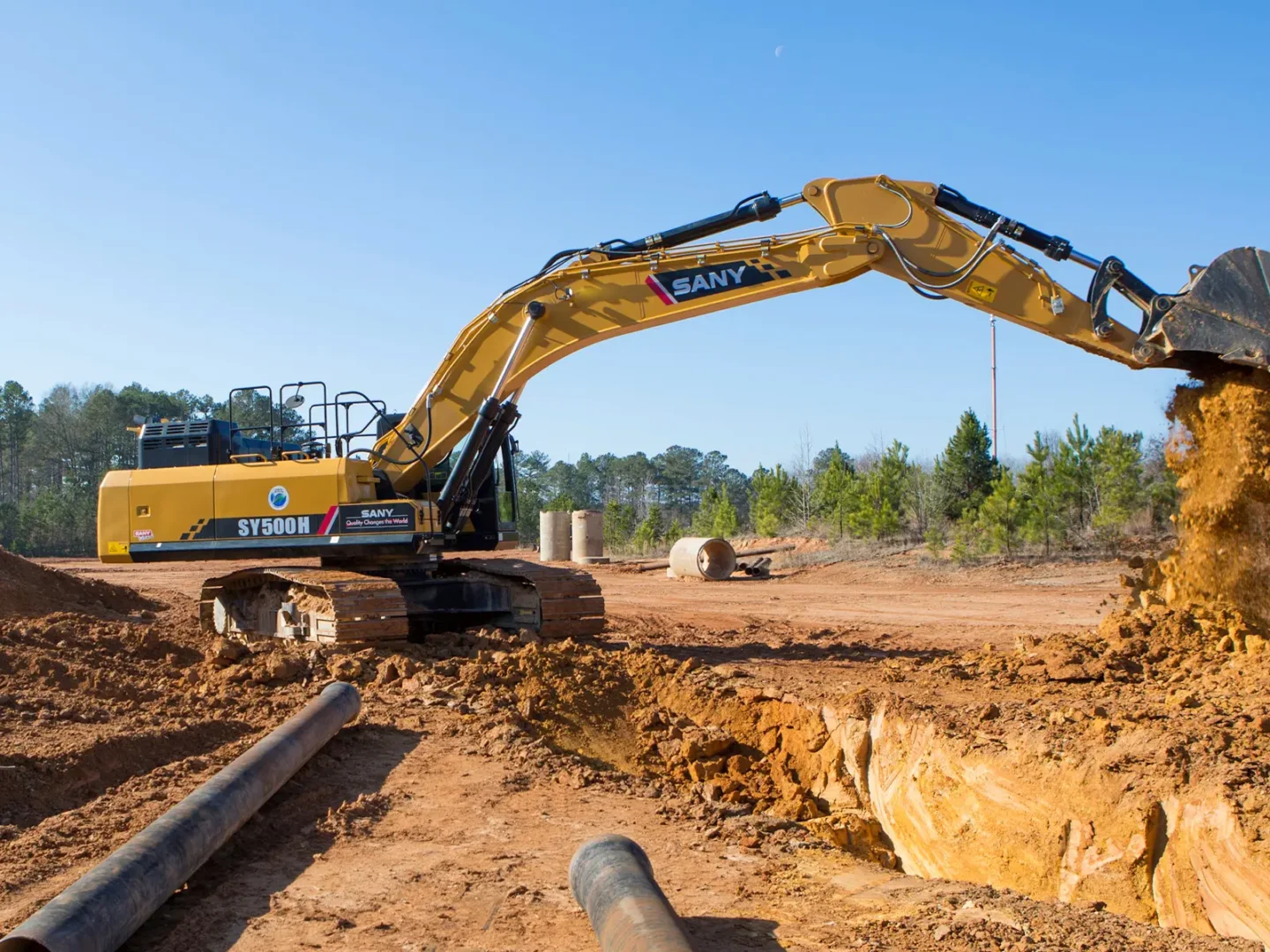

Caption: Sany SY500H Crawler Excavator in jobsite field operations

Sany logoHydraulic Excavator

Sany SY500H

Source-Verified

Mining Excavator (> 50t) · Crawler Chassis

Operating Weight52.5 T Class
52,500 kg
≈ 115,742.5 lbs
Max Dig DepthGround Reach
7.70 m
≈ 25.3 ft
Net Engine PowerCrawler
400 HP
≈ 298 kW
Verified Technical Fact Sheet · Sany SY500H

The official operating weight of the Sany SY500H is 52,500 kg (115,742.5 lbs), with a net engine output of 400 HP and a maximum digging depth of 7.70 m. Classified as a Mining Excavator (> 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
Manufacturer Proprietary
Net Power
400 HP (298 kW)
Gross Power
402 HP
Displacement
N/A
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
52,500 kg
Weight (lbs)
115,742.5 lbs
Hydraulic System Flow
720 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
7.70 m (25.3 ft)
Max Reach (Ground)
N/A
Max Dump Height
N/A
Shipping Width
3640 mm
Shipping Height
3874 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Sany

Sany SY500H Technical Specifications

Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Region: NA
Engine Rating Standards
Net: ISO 9249
Gross: ISO 14396
Market: NA
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Sany SY500H jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Sany SY500H

How much does a Sany SY500H excavator weigh?

The official operating weight of the Sany SY500H hydraulic excavator is 52,500 kg (115,742.5 lbs) (52.5 metric tonnes), categorizing it within the Mining Excavator (> 50t) range.

What is the maximum digging depth of the Sany SY500H?

The maximum digging depth for the Sany SY500H is 7.70 m (25.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Sany SY500H have?

The Sany SY500H is powered by a Sany OEM powertrain delivering 400 HP (298 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Sany SY500H?

The Sany SY500H is classified as a Mining Excavator (> 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
