Tata Hitachi HITACHIEX350LCH Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

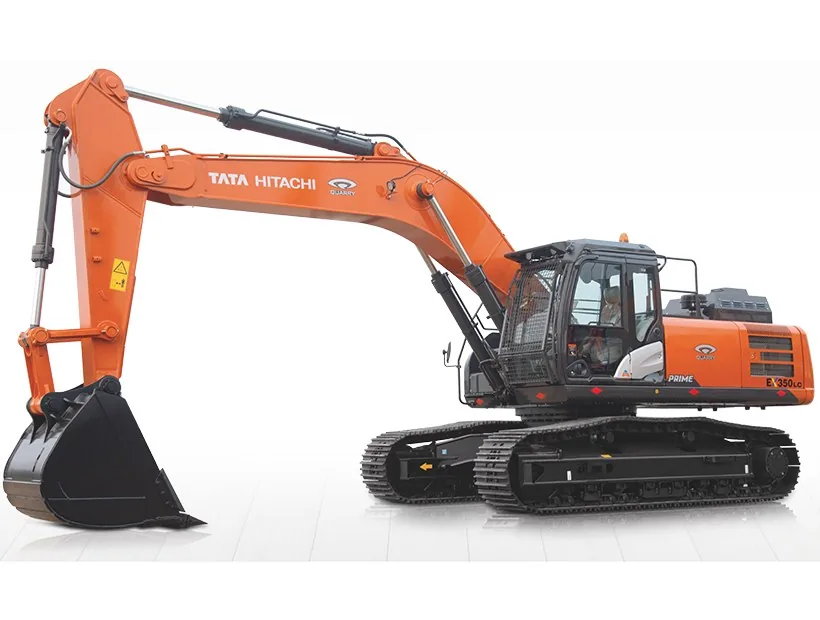

Caption: Tata Hitachi HITACHIEX350LCH Crawler Excavator in jobsite field operations

Tata Hitachi logoHydraulic Excavator

Tata Hitachi HITACHIEX350LCH

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight34.0 T Class
34,000 kg
≈ 74,957.1 lbs
Max Dig DepthGround Reach
6.48 m
≈ 21.3 ft
Net Engine PowerCrawler
N/A
≈ N/A
Verified Technical Fact Sheet · Tata Hitachi HITACHIEX350LCH

The official operating weight of the Tata Hitachi HITACHIEX350LCH is 34,000 kg (74,957.1 lbs), with a net engine output of N/A and a maximum digging depth of 6.48 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
B-65D1T
Net Power
N/A
Gross Power
226.7 HP
Displacement
9.84 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
34,000 kg
Weight (lbs)
74,957.1 lbs
Hydraulic System Flow
520.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.53 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.48 m (21.3 ft)
Max Reach (Ground)
10.90 m
Max Dump Height
7.13 m
Shipping Width
3191 mm
Shipping Height
3130 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Tata Hitachi Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Tata Hitachi HITACHIEX350LCH jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Tata Hitachi HITACHIEX350LCH

How much does a Tata Hitachi HITACHIEX350LCH excavator weigh?

The official operating weight of the Tata Hitachi HITACHIEX350LCH hydraulic excavator is 34,000 kg (74,957.1 lbs) (34 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Tata Hitachi HITACHIEX350LCH?

The maximum digging depth for the Tata Hitachi HITACHIEX350LCH is 6.48 m (21.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Tata Hitachi HITACHIEX350LCH have?

The Tata Hitachi HITACHIEX350LCH is powered by a B-65D1T powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Tata Hitachi HITACHIEX350LCH?

The Tata Hitachi HITACHIEX350LCH is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
