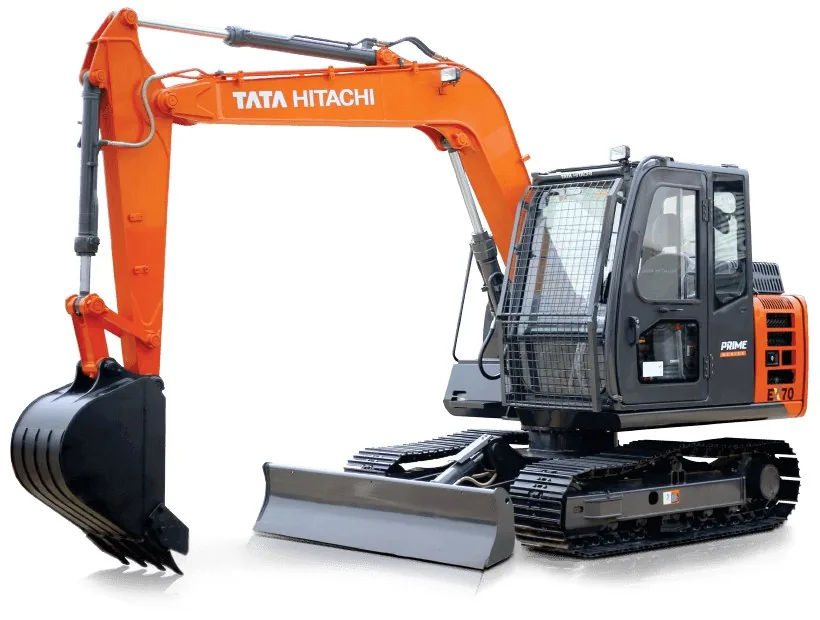

Caption: Tata Hitachi HITACHIEX70 Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIEX70
Midi Excavator (6 - 10t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIEX70 is 7,220 kg (15,917.4 lbs), with a net engine output of N/A and a maximum digging depth of 4.06 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- TATA-497 NA
- Net Power
- N/A
- Gross Power
- 58 HP
- Displacement
- N/A
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 7,220 kg
- Weight (lbs)
- 15,917.4 lbs
- Hydraulic System Flow
- 130.2 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.31 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 4.06 m (13.3 ft)
- Max Reach (Ground)
- 6.66 m
- Max Dump Height
- 5.47 m
- Shipping Width
- 2301 mm
- Shipping Height
- 2682 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIEX70 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIEX70
How much does a Tata Hitachi HITACHIEX70 excavator weigh?
The official operating weight of the Tata Hitachi HITACHIEX70 hydraulic excavator is 7,220 kg (15,917.4 lbs) (7.2 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIEX70?
The maximum digging depth for the Tata Hitachi HITACHIEX70 is 4.06 m (13.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIEX70 have?
The Tata Hitachi HITACHIEX70 is powered by a TATA-497 NA powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIEX70?
The Tata Hitachi HITACHIEX70 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
