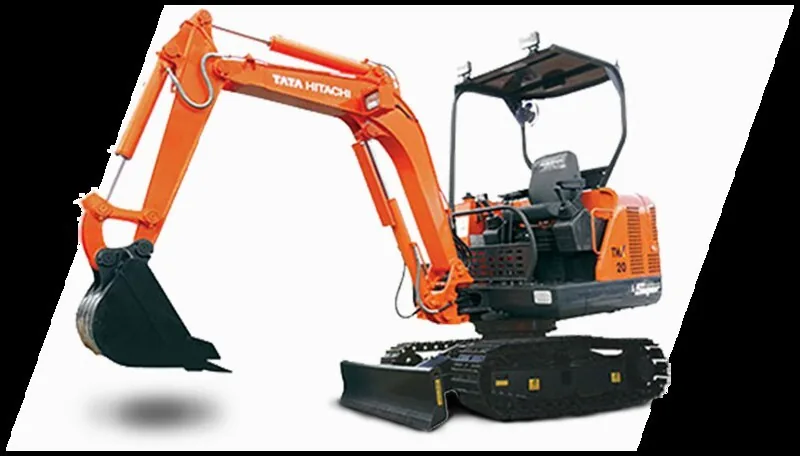

Caption: Tata Hitachi HITACHITMX20 Crawler Excavator in jobsite field operations
Tata Hitachi HITACHITMX20
Mini Excavator (2 - 6t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHITMX20 is 2,200 kg (4,850.2 lbs), with a net engine output of N/A and a maximum digging depth of 2.33 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- S217
- Net Power
- N/A
- Gross Power
- 28 HP
- Displacement
- N/A
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 2,200 kg
- Weight (lbs)
- 4,850.2 lbs
- Hydraulic System Flow
- 64 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.08 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 2.33 m (7.6 ft)
- Max Reach (Ground)
- 4.04 m
- Max Dump Height
- 2.68 m
- Shipping Width
- 1372 mm
- Shipping Height
- 2368 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHITMX20 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHITMX20
How much does a Tata Hitachi HITACHITMX20 excavator weigh?
The official operating weight of the Tata Hitachi HITACHITMX20 hydraulic excavator is 2,200 kg (4,850.2 lbs) (2.2 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.
What is the maximum digging depth of the Tata Hitachi HITACHITMX20?
The maximum digging depth for the Tata Hitachi HITACHITMX20 is 2.33 m (7.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHITMX20 have?
The Tata Hitachi HITACHITMX20 is powered by a S217 powertrain delivering N/A net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHITMX20?
The Tata Hitachi HITACHITMX20 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
