Tata Hitachi HITACHIZAXIS110M Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: AlimuART

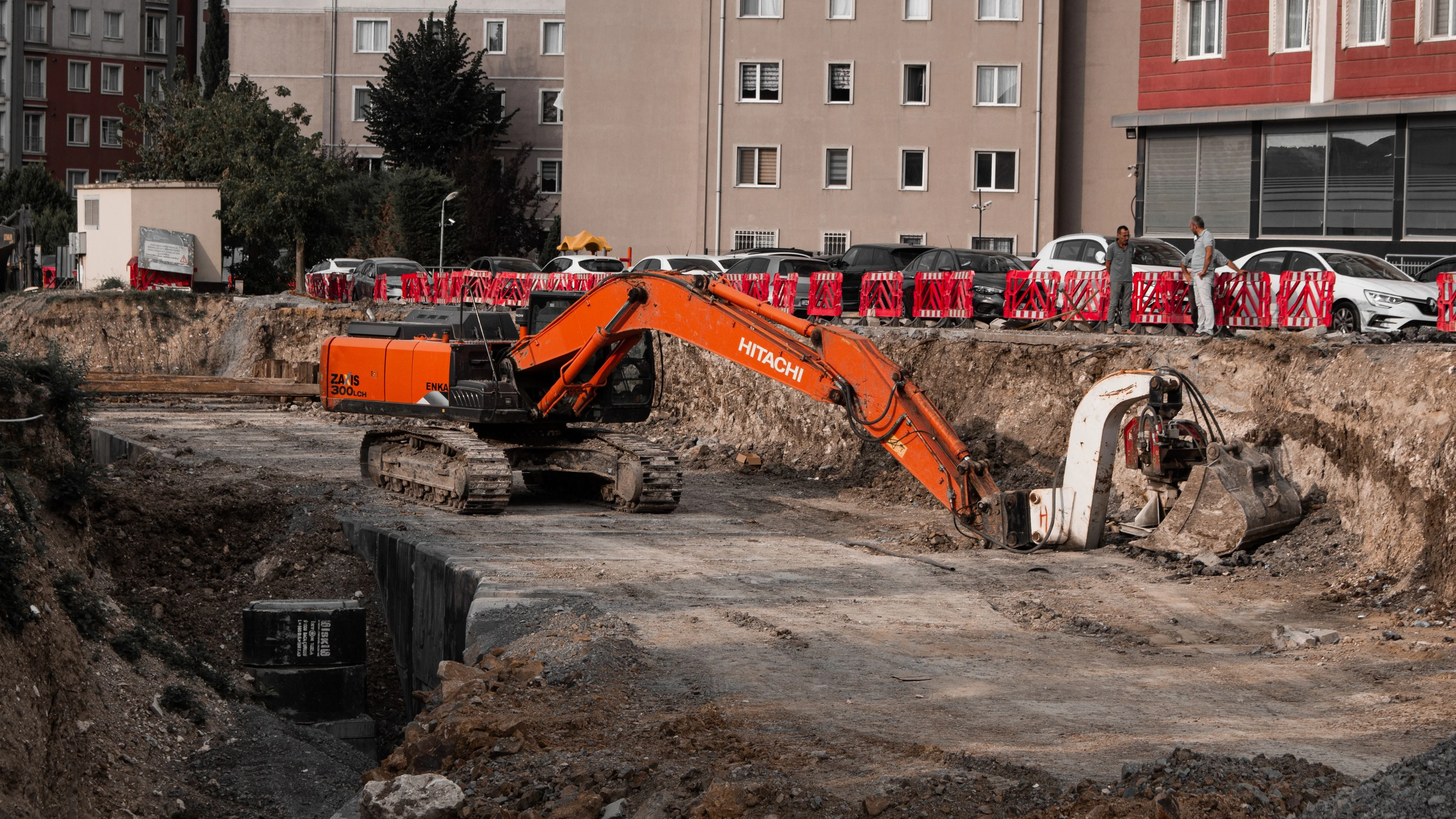

Caption: Tata Hitachi HITACHIZAXIS110M Crawler Excavator in jobsite field operations

Tata Hitachi logoHydraulic Excavator

Tata Hitachi HITACHIZAXIS110M

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight12.8 T Class
12,800 kg
≈ 28,219.1 lbs
Max Dig DepthGround Reach
4.94 m
≈ 16.2 ft
Net Engine PowerCrawler
84.5 HP
≈ 63 kW
Verified Technical Fact Sheet · Tata Hitachi HITACHIZAXIS110M

The official operating weight of the Tata Hitachi HITACHIZAXIS110M is 12,800 kg (28,219.1 lbs), with a net engine output of 84.5 HP and a maximum digging depth of 4.94 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
BB-4BG1T
Net Power
84.5 HP (63 kW)
Gross Power
84.5 HP
Displacement
4.33 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
12,800 kg
Weight (lbs)
28,219.1 lbs
Hydraulic System Flow
200.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.46 m³

Working Dimensions & Dig Depth

Max Digging Depth
4.94 m (16.2 ft)
Max Reach (Ground)
8.02 m
Max Dump Height
6.17 m
Shipping Width
2740 mm
Shipping Height
2950 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Tata Hitachi Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Tata Hitachi HITACHIZAXIS110M jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Tata Hitachi HITACHIZAXIS110M

How much does a Tata Hitachi HITACHIZAXIS110M excavator weigh?

The official operating weight of the Tata Hitachi HITACHIZAXIS110M hydraulic excavator is 12,800 kg (28,219.1 lbs) (12.8 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS110M?

The maximum digging depth for the Tata Hitachi HITACHIZAXIS110M is 4.94 m (16.2 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Tata Hitachi HITACHIZAXIS110M have?

The Tata Hitachi HITACHIZAXIS110M is powered by a BB-4BG1T powertrain delivering 84.5 HP (63 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Tata Hitachi HITACHIZAXIS110M?

The Tata Hitachi HITACHIZAXIS110M is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
