Tata Hitachi HITACHIZAXIS330LC Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

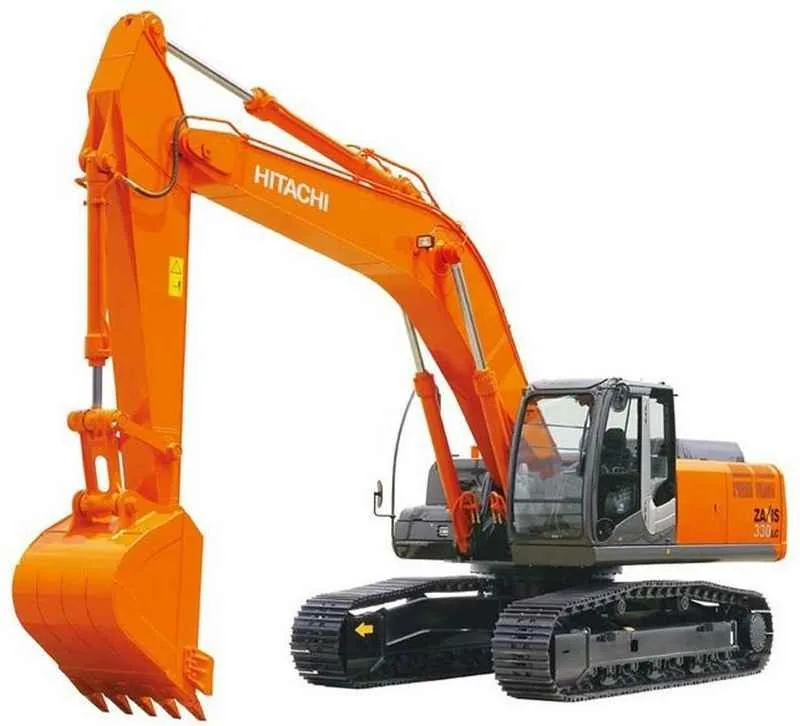

Caption: Tata Hitachi HITACHIZAXIS330LC Crawler Excavator in jobsite field operations

Tata Hitachi logoHydraulic Excavator

Tata Hitachi HITACHIZAXIS330LC

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight31.6 T Class
31,600 kg
≈ 69,666 lbs
Max Dig DepthGround Reach
7.37 m
≈ 24.2 ft
Net Engine PowerCrawler
246.8 HP
≈ 184 kW
Verified Technical Fact Sheet · Tata Hitachi HITACHIZAXIS330LC

The official operating weight of the Tata Hitachi HITACHIZAXIS330LC is 31,600 kg (69,666 lbs), with a net engine output of 246.8 HP and a maximum digging depth of 7.37 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
AA-6HK1X
Net Power
246.8 HP (184 kW)
Gross Power
246.8 HP
Displacement
7.79 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
31,600 kg
Weight (lbs)
69,666 lbs
Hydraulic System Flow
32.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.45 m³

Working Dimensions & Dig Depth

Max Digging Depth
7.37 m (24.2 ft)
Max Reach (Ground)
11.68 m
Max Dump Height
7.50 m
Shipping Width
3191 mm
Shipping Height
3142 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Tata Hitachi Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Tata Hitachi HITACHIZAXIS330LC jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Tata Hitachi HITACHIZAXIS330LC

How much does a Tata Hitachi HITACHIZAXIS330LC excavator weigh?

The official operating weight of the Tata Hitachi HITACHIZAXIS330LC hydraulic excavator is 31,600 kg (69,666 lbs) (31.6 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS330LC?

The maximum digging depth for the Tata Hitachi HITACHIZAXIS330LC is 7.37 m (24.2 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Tata Hitachi HITACHIZAXIS330LC have?

The Tata Hitachi HITACHIZAXIS330LC is powered by a AA-6HK1X powertrain delivering 246.8 HP (184 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Tata Hitachi HITACHIZAXIS330LC?

The Tata Hitachi HITACHIZAXIS330LC is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
