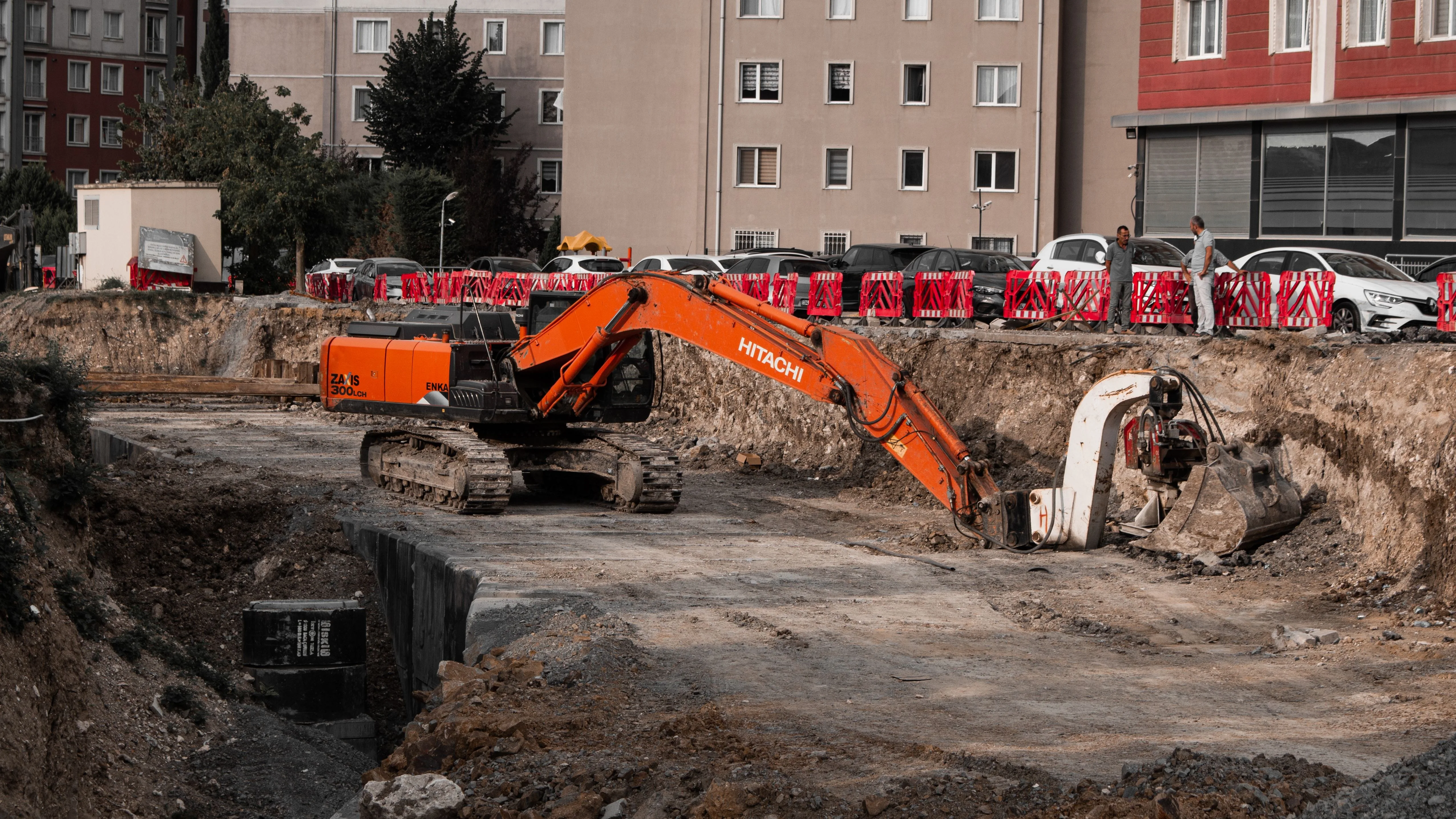

Caption: Tata Hitachi HITACHIZAXIS470LCH Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIZAXIS470LCH
Large Excavator (25 - 50t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIZAXIS470LCH is 48,100 kg (106,042.2 lbs), with a net engine output of 348.7 HP and a maximum digging depth of 4.27 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- AH-6WG1XYSA-01
- Net Power
- 348.7 HP (260 kW)
- Gross Power
- 348.7 HP
- Displacement
- 15.68 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 48,100 kg
- Weight (lbs)
- 106,042.2 lbs
- Hydraulic System Flow
- 720.4 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 1.91 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 4.27 m (14 ft)
- Max Reach (Ground)
- 11.84 m
- Max Dump Height
- 7.65 m
- Shipping Width
- 3493 mm
- Shipping Height
- 3450 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIZAXIS470LCH jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIZAXIS470LCH
How much does a Tata Hitachi HITACHIZAXIS470LCH excavator weigh?
The official operating weight of the Tata Hitachi HITACHIZAXIS470LCH hydraulic excavator is 48,100 kg (106,042.2 lbs) (48.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS470LCH?
The maximum digging depth for the Tata Hitachi HITACHIZAXIS470LCH is 4.27 m (14.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIZAXIS470LCH have?
The Tata Hitachi HITACHIZAXIS470LCH is powered by a AH-6WG1XYSA-01 powertrain delivering 348.7 HP (260 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIZAXIS470LCH?
The Tata Hitachi HITACHIZAXIS470LCH is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
