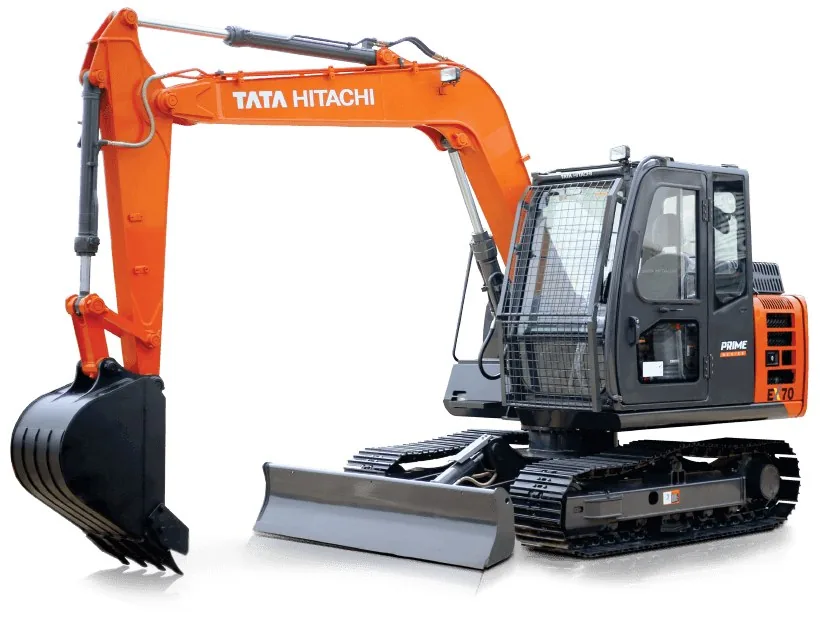

Caption: Tata Hitachi HITACHIZAXIS70 Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIZAXIS70
Midi Excavator (6 - 10t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIZAXIS70 is 6,300 kg (13,889.1 lbs), with a net engine output of 54.4 HP and a maximum digging depth of 4.28 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- CC-4JG1
- Net Power
- 54.4 HP (41 kW)
- Gross Power
- 54.4 HP
- Displacement
- 3.06 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 6,300 kg
- Weight (lbs)
- 13,889.1 lbs
- Hydraulic System Flow
- 178.7 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.31 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 4.28 m (14 ft)
- Max Reach (Ground)
- 6.67 m
- Max Dump Height
- 5.45 m
- Shipping Width
- 2201 mm
- Shipping Height
- 2603 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIZAXIS70 jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIZAXIS70
How much does a Tata Hitachi HITACHIZAXIS70 excavator weigh?
The official operating weight of the Tata Hitachi HITACHIZAXIS70 hydraulic excavator is 6,300 kg (13,889.1 lbs) (6.3 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS70?
The maximum digging depth for the Tata Hitachi HITACHIZAXIS70 is 4.28 m (14.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIZAXIS70 have?
The Tata Hitachi HITACHIZAXIS70 is powered by a CC-4JG1 powertrain delivering 54.4 HP (41 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIZAXIS70?
The Tata Hitachi HITACHIZAXIS70 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
