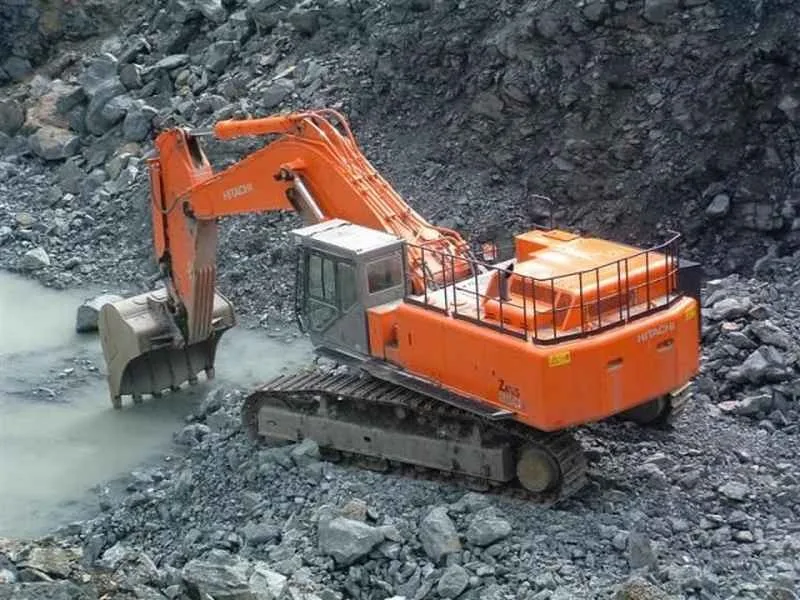

Caption: Tata Hitachi HITACHIZAXIS850LC Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIZAXIS850LC
Mining Excavator (> 50t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIZAXIS850LC is 82,201 kg (181,222 lbs), with a net engine output of 532.4 HP and a maximum digging depth of 8.48 m. Classified as a Mining Excavator (> 50t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- AH-6WG1XYSA-03
- Net Power
- 532.4 HP (397 kW)
- Gross Power
- 532.4 HP
- Displacement
- 15.68 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 82,201 kg
- Weight (lbs)
- 181,222 lbs
- Hydraulic System Flow
- 1056.1 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 3.52 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 8.48 m (27.8 ft)
- Max Reach (Ground)
- 14.64 m
- Max Dump Height
- 9.74 m
- Shipping Width
- 4103 mm
- Shipping Height
- 3630 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIZAXIS850LC jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIZAXIS850LC
How much does a Tata Hitachi HITACHIZAXIS850LC excavator weigh?
The official operating weight of the Tata Hitachi HITACHIZAXIS850LC hydraulic excavator is 82,201 kg (181,222 lbs) (82.2 metric tonnes), categorizing it within the Mining Excavator (> 50t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS850LC?
The maximum digging depth for the Tata Hitachi HITACHIZAXIS850LC is 8.48 m (27.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIZAXIS850LC have?
The Tata Hitachi HITACHIZAXIS850LC is powered by a AH-6WG1XYSA-03 powertrain delivering 532.4 HP (397 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIZAXIS850LC?
The Tata Hitachi HITACHIZAXIS850LC is classified as a Mining Excavator (> 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
