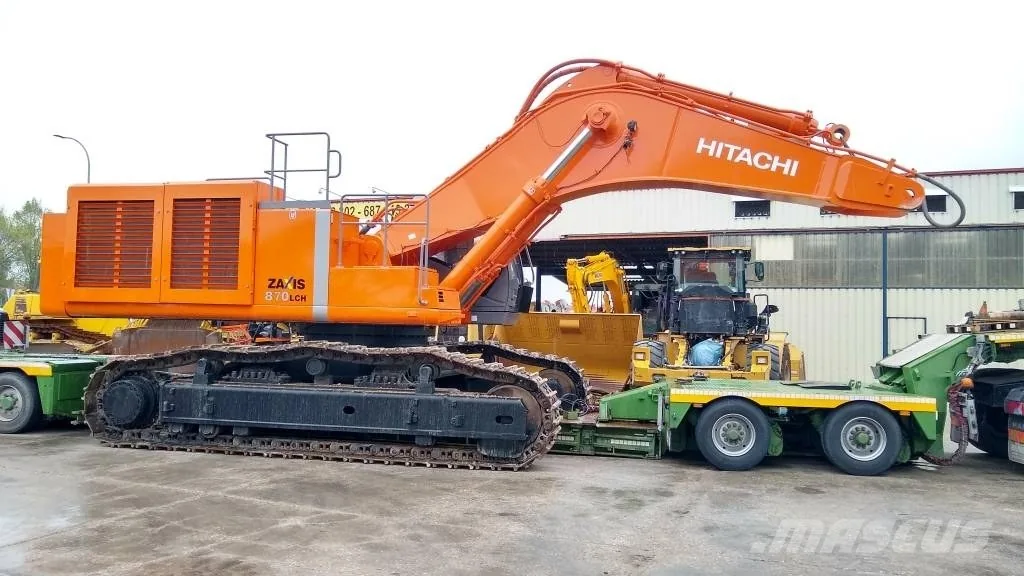

Caption: Tata Hitachi HITACHIZAXIS870LCH Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIZAXIS870LCH
Mining Excavator (> 50t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIZAXIS870LCH is 84,001 kg (185,190.3 lbs), with a net engine output of 532.4 HP and a maximum digging depth of 6.84 m. Classified as a Mining Excavator (> 50t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- AH-6WG1XYSA-03
- Net Power
- 532.4 HP (397 kW)
- Gross Power
- 532.4 HP
- Displacement
- 15.68 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 84,001 kg
- Weight (lbs)
- 185,190.3 lbs
- Hydraulic System Flow
- 1056.1 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 3.52 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 6.84 m (22.5 ft)
- Max Reach (Ground)
- 13.82 m
- Max Dump Height
- 9.08 m
- Shipping Width
- 4103 mm
- Shipping Height
- 3783 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIZAXIS870LCH jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIZAXIS870LCH
How much does a Tata Hitachi HITACHIZAXIS870LCH excavator weigh?
The official operating weight of the Tata Hitachi HITACHIZAXIS870LCH hydraulic excavator is 84,001 kg (185,190.3 lbs) (84 metric tonnes), categorizing it within the Mining Excavator (> 50t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS870LCH?
The maximum digging depth for the Tata Hitachi HITACHIZAXIS870LCH is 6.84 m (22.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIZAXIS870LCH have?
The Tata Hitachi HITACHIZAXIS870LCH is powered by a AH-6WG1XYSA-03 powertrain delivering 532.4 HP (397 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIZAXIS870LCH?
The Tata Hitachi HITACHIZAXIS870LCH is classified as a Mining Excavator (> 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
