Volvo EC180CL Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: None

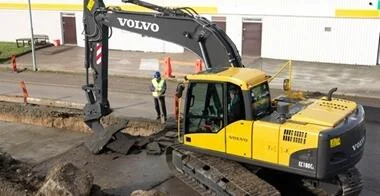

Caption: Volvo EC180CL Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC180CL

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight18.3 T Class
18,300 kg
≈ 40,344.5 lbs
Max Dig DepthGround Reach
4.93 m
≈ 16.2 ft
Net Engine PowerCrawler
116.7 HP
≈ 87 kW
Verified Technical Fact Sheet · Volvo EC180CL

The official operating weight of the Volvo EC180CL is 18,300 kg (40,344.5 lbs), with a net engine output of 116.7 HP and a maximum digging depth of 4.93 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D6E EBE3
Net Power
116.7 HP (87 kW)
Gross Power
131.5 HP
Displacement
5.7 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
18,300 kg
Weight (lbs)
40,344.5 lbs
Hydraulic System Flow
290.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.69 m³

Working Dimensions & Dig Depth

Max Digging Depth
4.93 m (16.2 ft)
Max Reach (Ground)
9.18 m
Max Dump Height
6.57 m
Shipping Width
2801 mm
Shipping Height
3033 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC180CL jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC180CL

How much does a Volvo EC180CL excavator weigh?

The official operating weight of the Volvo EC180CL hydraulic excavator is 18,300 kg (40,344.5 lbs) (18.3 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Volvo EC180CL?

The maximum digging depth for the Volvo EC180CL is 4.93 m (16.2 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC180CL have?

The Volvo EC180CL is powered by a D6E EBE3 powertrain delivering 116.7 HP (87 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC180CL?

The Volvo EC180CL is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
