Volvo EC210C Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

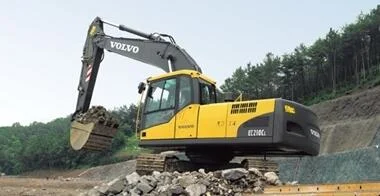

Caption: Volvo EC210C Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC210C

Medium Excavator (10 - 25t) · Crawler Chassis

Operating Weight22.0 T Class
22,008 kg
≈ 48,519.3 lbs
Max Dig DepthGround Reach
6.19 m
≈ 20.3 ft
Net Engine PowerCrawler
147 HP
≈ 110 kW
Verified Technical Fact Sheet · Volvo EC210C

The official operating weight of the Volvo EC210C is 22,008 kg (48,519.3 lbs), with a net engine output of 147 HP and a maximum digging depth of 6.19 m. Classified as a Medium Excavator (10 - 25t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D6E EAE3
Net Power
147 HP (110 kW)
Gross Power
165 HP
Displacement
5.7 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
22,008 kg
Weight (lbs)
48,519.3 lbs
Hydraulic System Flow
401.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.15 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.19 m (20.3 ft)
Max Reach (Ground)
15.73 m
Max Dump Height
10.97 m
Shipping Width
3200 mm
Shipping Height
3170 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC210C jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC210C

How much does a Volvo EC210C excavator weigh?

The official operating weight of the Volvo EC210C hydraulic excavator is 22,008 kg (48,519.3 lbs) (22 metric tonnes), categorizing it within the Medium Excavator (10 - 25t) range.

What is the maximum digging depth of the Volvo EC210C?

The maximum digging depth for the Volvo EC210C is 6.19 m (20.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC210C have?

The Volvo EC210C is powered by a D6E EAE3 powertrain delivering 147 HP (110 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC210C?

The Volvo EC210C is classified as a Medium Excavator (10 - 25t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
