Volvo EC240C Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: None

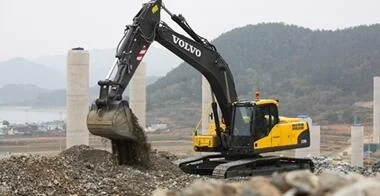

Caption: Volvo EC240C Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC240C

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight25.9 T Class
25,905 kg
≈ 57,110.7 lbs
Max Dig DepthGround Reach
6.72 m
≈ 22.1 ft
Net Engine PowerCrawler
168 HP
≈ 125 kW
Verified Technical Fact Sheet · Volvo EC240C

The official operating weight of the Volvo EC240C is 25,905 kg (57,110.7 lbs), with a net engine output of 168 HP and a maximum digging depth of 6.72 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D7E EBE3
Net Power
168 HP (125 kW)
Gross Power
185 HP
Displacement
7.14 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
25,905 kg
Weight (lbs)
57,110.7 lbs
Hydraulic System Flow
461.8 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.45 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.72 m (22.1 ft)
Max Reach (Ground)
18.21 m
Max Dump Height
12.58 m
Shipping Width
3392 mm
Shipping Height
3173 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC240C jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC240C

How much does a Volvo EC240C excavator weigh?

The official operating weight of the Volvo EC240C hydraulic excavator is 25,905 kg (57,110.7 lbs) (25.9 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo EC240C?

The maximum digging depth for the Volvo EC240C is 6.72 m (22.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC240C have?

The Volvo EC240C is powered by a D7E EBE3 powertrain delivering 168 HP (125 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC240C?

The Volvo EC240C is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
