Volvo EC290C Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

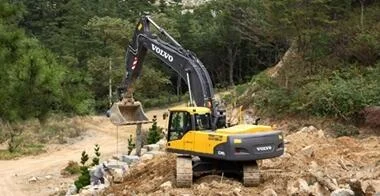

Caption: Volvo EC290C Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC290C

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight30.1 T Class
30,114 kg
≈ 66,389.9 lbs
Max Dig DepthGround Reach
6.59 m
≈ 21.6 ft
Net Engine PowerCrawler
192 HP
≈ 143 kW
Verified Technical Fact Sheet · Volvo EC290C

The official operating weight of the Volvo EC290C is 30,114 kg (66,389.9 lbs), with a net engine output of 192 HP and a maximum digging depth of 6.59 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D7E EAE3
Net Power
192 HP (143 kW)
Gross Power
205 HP
Displacement
7.14 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
30,114 kg
Weight (lbs)
66,389.9 lbs
Hydraulic System Flow
499.7 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.53 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.59 m (21.6 ft)
Max Reach (Ground)
18.49 m
Max Dump Height
12.58 m
Shipping Width
3392 mm
Shipping Height
3341 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC290C jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC290C

How much does a Volvo EC290C excavator weigh?

The official operating weight of the Volvo EC290C hydraulic excavator is 30,114 kg (66,389.9 lbs) (30.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo EC290C?

The maximum digging depth for the Volvo EC290C is 6.59 m (21.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC290C have?

The Volvo EC290C is powered by a D7E EAE3 powertrain delivering 192 HP (143 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC290C?

The Volvo EC290C is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
