Volvo EC30 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

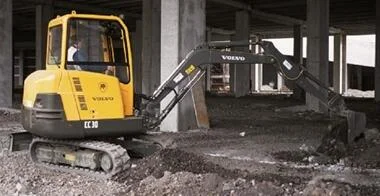

Caption: Volvo EC30 Crawler Excavator in jobsite field operations

Volvo logoMini Excavator

Volvo EC30

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight3.1 T Class
3,090 kg
≈ 6,812.3 lbs
Max Dig DepthGround Reach
2.44 m
≈ 8.0 ft
Net Engine PowerCrawler
23.8 HP
≈ 18 kW
Verified Technical Fact Sheet · Volvo EC30

The official operating weight of the Volvo EC30 is 3,090 kg (6,812.3 lbs), with a net engine output of 23.8 HP and a maximum digging depth of 2.44 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
S3L2
Net Power
23.8 HP (18 kW)
Gross Power
26.8 HP
Displacement
1.31 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
3,090 kg
Weight (lbs)
6,812.3 lbs
Hydraulic System Flow
62.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.08 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.44 m (8 ft)
Max Reach (Ground)
4.91 m
Max Dump Height
3.43 m
Shipping Width
1481 mm
Shipping Height
2393 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC30 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC30

How much does a Volvo EC30 excavator weigh?

The official operating weight of the Volvo EC30 hydraulic excavator is 3,090 kg (6,812.3 lbs) (3.1 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Volvo EC30?

The maximum digging depth for the Volvo EC30 is 2.44 m (8.0 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC30 have?

The Volvo EC30 is powered by a S3L2 powertrain delivering 23.8 HP (18 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC30?

The Volvo EC30 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
