Volvo EC330CL Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

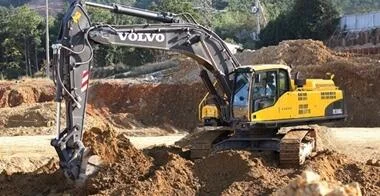

Caption: Volvo EC330CL Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC330CL

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight36.1 T Class
36,074 kg
≈ 79,529.5 lbs
Max Dig DepthGround Reach
5.51 m
≈ 18.1 ft
Net Engine PowerCrawler
247 HP
≈ 184 kW
Verified Technical Fact Sheet · Volvo EC330CL

The official operating weight of the Volvo EC330CL is 36,074 kg (79,529.5 lbs), with a net engine output of 247 HP and a maximum digging depth of 5.51 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D12D EBE3
Net Power
247 HP (184 kW)
Gross Power
265 HP
Displacement
12.09 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
36,074 kg
Weight (lbs)
79,529.5 lbs
Hydraulic System Flow
560.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.83 m³

Working Dimensions & Dig Depth

Max Digging Depth
5.51 m (18.1 ft)
Max Reach (Ground)
11.44 m
Max Dump Height
7.52 m
Shipping Width
3392 mm
Shipping Height
3591 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC330CL jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC330CL

How much does a Volvo EC330CL excavator weigh?

The official operating weight of the Volvo EC330CL hydraulic excavator is 36,074 kg (79,529.5 lbs) (36.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo EC330CL?

The maximum digging depth for the Volvo EC330CL is 5.51 m (18.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC330CL have?

The Volvo EC330CL is powered by a D12D EBE3 powertrain delivering 247 HP (184 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC330CL?

The Volvo EC330CL is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
