Volvo EC45PRO Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

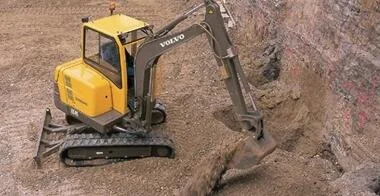

Caption: Volvo EC45PRO Crawler Excavator in jobsite field operations

Volvo logoMidi Excavator

Volvo EC45PRO

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight4.5 T Class
4,550 kg
≈ 10,031 lbs
Max Dig DepthGround Reach
2.27 m
≈ 7.5 ft
Net Engine PowerCrawler
34 HP
≈ 25 kW
Verified Technical Fact Sheet · Volvo EC45PRO

The official operating weight of the Volvo EC45PRO is 4,550 kg (10,031 lbs), with a net engine output of 34 HP and a maximum digging depth of 2.27 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
K4N
Net Power
34 HP (25 kW)
Gross Power
38 HP
Displacement
2.29 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
4,550 kg
Weight (lbs)
10,031 lbs
Hydraulic System Flow
99.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.08 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.27 m (7.5 ft)
Max Reach (Ground)
5.67 m
Max Dump Height
3.67 m
Shipping Width
1801 mm
Shipping Height
2542 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC45PRO jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC45PRO

How much does a Volvo EC45PRO excavator weigh?

The official operating weight of the Volvo EC45PRO hydraulic excavator is 4,550 kg (10,031 lbs) (4.5 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Volvo EC45PRO?

The maximum digging depth for the Volvo EC45PRO is 2.27 m (7.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC45PRO have?

The Volvo EC45PRO is powered by a K4N powertrain delivering 34 HP (25 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC45PRO?

The Volvo EC45PRO is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
