Volvo EC460C Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

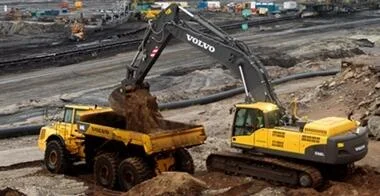

Caption: Volvo EC460C Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC460C

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight47.1 T Class
47,129 kg
≈ 103,901.5 lbs
Max Dig DepthGround Reach
6.84 m
≈ 22.5 ft
Net Engine PowerCrawler
315 HP
≈ 235 kW
Verified Technical Fact Sheet · Volvo EC460C

The official operating weight of the Volvo EC460C is 47,129 kg (103,901.5 lbs), with a net engine output of 315 HP and a maximum digging depth of 6.84 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D12D EAE3
Net Power
315 HP (235 kW)
Gross Power
329 HP
Displacement
12.09 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
47,129 kg
Weight (lbs)
103,901.5 lbs
Hydraulic System Flow
688.9 L/min
Fuel Tank Capacity
N/A
Standard Bucket
3.13 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.84 m (22.5 ft)
Max Reach (Ground)
13.02 m
Max Dump Height
7.87 m
Shipping Width
3642 mm
Shipping Height
4651 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC460C jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC460C

How much does a Volvo EC460C excavator weigh?

The official operating weight of the Volvo EC460C hydraulic excavator is 47,129 kg (103,901.5 lbs) (47.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo EC460C?

The maximum digging depth for the Volvo EC460C is 6.84 m (22.5 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC460C have?

The Volvo EC460C is powered by a D12D EAE3 powertrain delivering 315 HP (235 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC460C?

The Volvo EC460C is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
