Volvo EC55 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

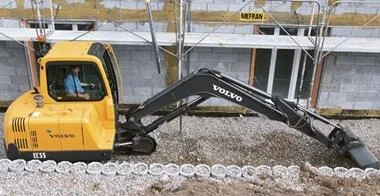

Caption: Volvo EC55 Crawler Excavator in jobsite field operations

Volvo logoMidi Excavator

Volvo EC55

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight4.9 T Class
4,910 kg
≈ 10,824.7 lbs
Max Dig DepthGround Reach
2.62 m
≈ 8.6 ft
Net Engine PowerCrawler
51 HP
≈ 38 kW
Verified Technical Fact Sheet · Volvo EC55

The official operating weight of the Volvo EC55 is 4,910 kg (10,824.7 lbs), with a net engine output of 51 HP and a maximum digging depth of 2.62 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
4TNE94-SM
Net Power
51 HP (38 kW)
Gross Power
53.7 HP
Displacement
2.8 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
4,910 kg
Weight (lbs)
10,824.7 lbs
Hydraulic System Flow
110.2 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.15 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.62 m (8.6 ft)
Max Reach (Ground)
5.98 m
Max Dump Height
4.09 m
Shipping Width
1920 mm
Shipping Height
2551 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC55 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC55

How much does a Volvo EC55 excavator weigh?

The official operating weight of the Volvo EC55 hydraulic excavator is 4,910 kg (10,824.7 lbs) (4.9 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Volvo EC55?

The maximum digging depth for the Volvo EC55 is 2.62 m (8.6 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC55 have?

The Volvo EC55 is powered by a 4TNE94-SM powertrain delivering 51 HP (38 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC55?

The Volvo EC55 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
